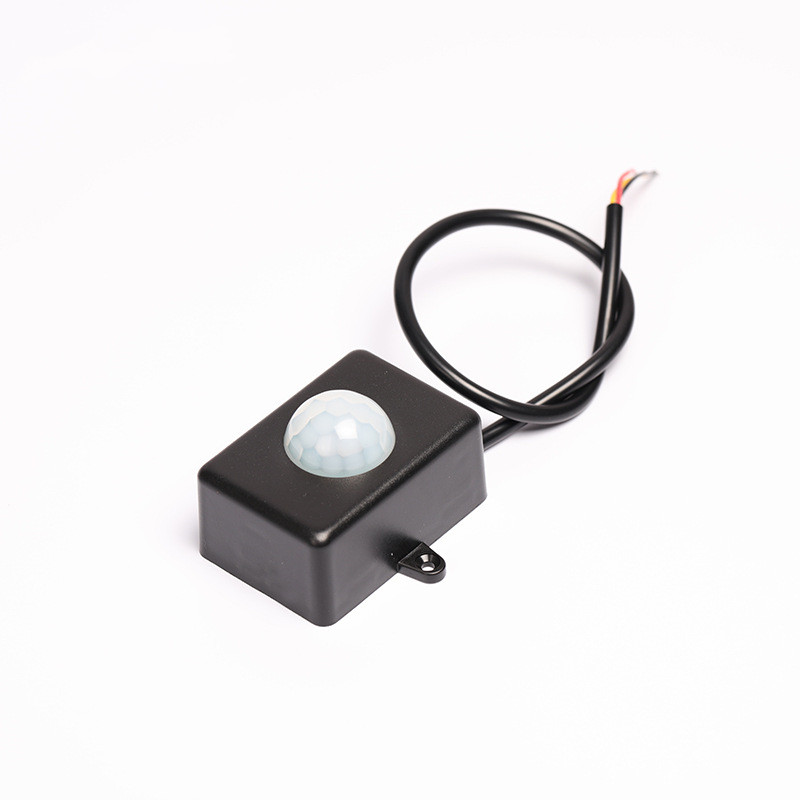

PIR Motion Sensor/Detector

https://electronics123.odoo.com/web/image/product.template/11946/image_1920?unique=e2e2e01
(0 review)

SKU : PIR-002
Quantity on Hand : 14
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

PIR-002

9.95 9.950000000000001 USD 9.95

9.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

ADD TO CART

 Features:

  • Operating voltage DC 5-24V
  • Current consumption ≤10mA (DC 12V)
  • Standby current ≤60uA
  • Level output 0V (3.3V at standby)
  • Delay time 3S
  • Detecting distance ≤6m
  • Detecting angle 120
  • Diameter of the Lens 23mm
  • Outline size 52L*36W*23H mm
  • Diameter of the mounting hole 2.5 mm
  • Length of the cable 45cm
  • Operating temperature -20C to +50C
  • Wiring:
    Red wire: +12V
    Black wire: GND
    Yellow wire: Signal

Connection of this PIR to FN-BC04 or FN-BC20 is as follows: GND to GND, power to power and output to K1

    This PIR connected to a FN-TG01-TB

    This PIR Connected to FN-AL7T
