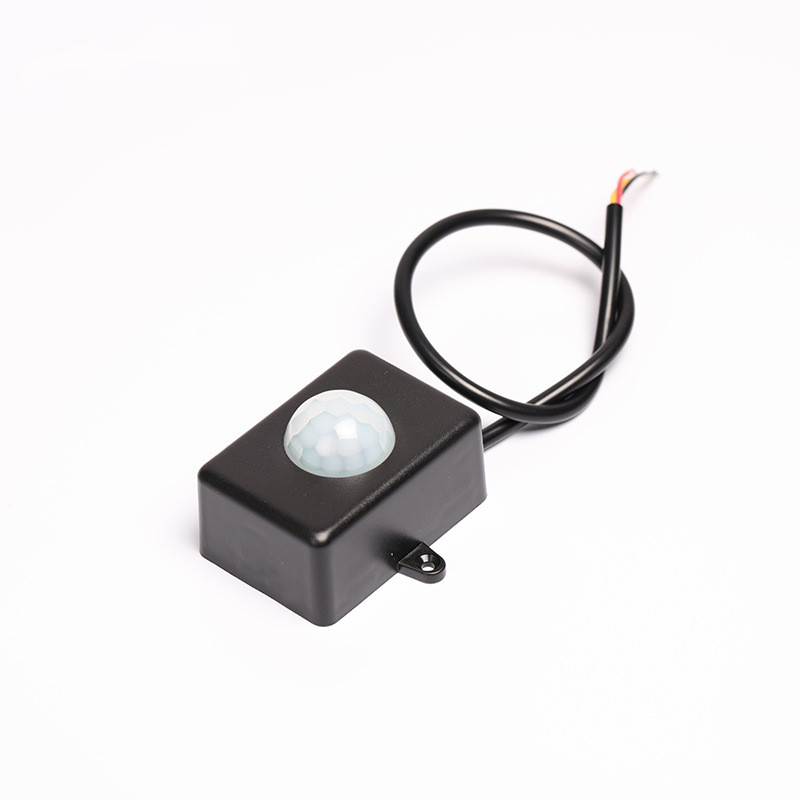

Features:
- Operating voltage DC 5-24V
- Current consumption ≤10mA (DC 12V)
- Standby current ≤60uA
- Level output 0V (3.3V at standby)
- Delay time 3S
- Detecting distance ≤6m
- Detecting angle 120
- Diameter of the Lens 23mm
- Outline size 52L*36W*23H mm
- Diameter of the mounting hole 2.5 mm
- Length of the cable 45cm
- Operating temperature -20C to +50C
- Wiring:
Red wire: +12V
Black wire: GND
Yellow wire: Signal
Connection of this PIR to FN-BC04 or FN-BC20 is as follows: GND to GND, power to power and output to K1
This PIR connected to a FN-TG01-TB
![](/web/image/414134-d7bb1a8d/FN-TG01-PIR%20%281%29.jpg?access_token=da0d9628-9124-4311-8879-2d9972aea35e)
![](/web/image/414135-12046995/FN-TG01-PIR%20%282%29.jpg?access_token=58424a09-2cd2-4d1e-862c-8a7a75c1991e)
This PIR Connected to FN-AL7T
![](/web/image/444558-7ef6c4de/FN-AL7T-PIR_2.jpg?access_token=d4df107b-a04c-4514-8bf1-fd8b38cdf15c)
![](/web/image/444560-2da4428f/Wiring%20Principle.jpg?access_token=9b9a5730-ae04-4db5-bb08-258ff30a4db2)
