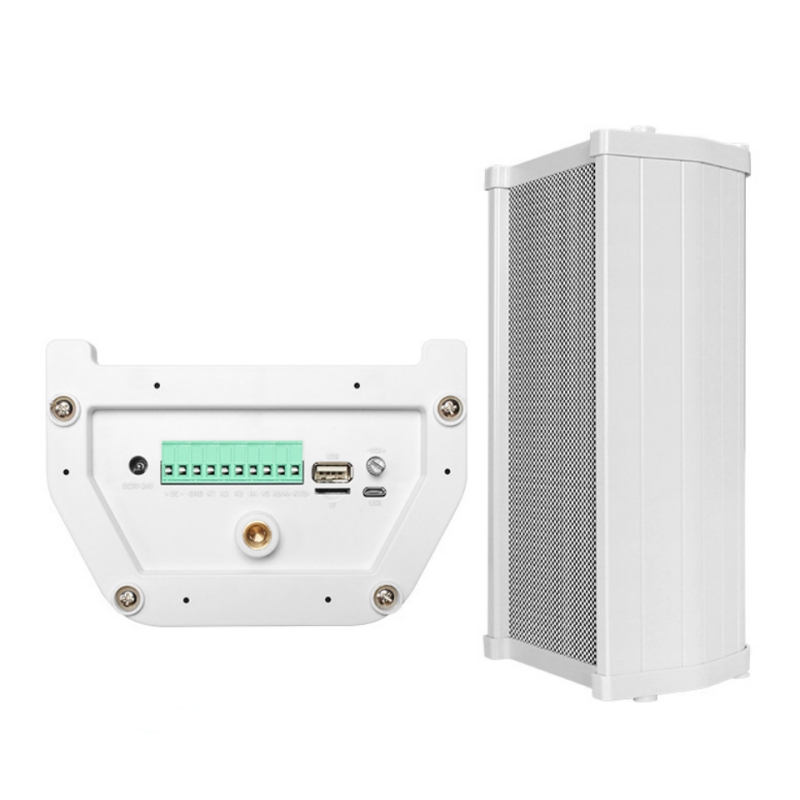

FNM-803B Weatherproof Button Triggerable Audio Player

https://electronics123.odoo.com/web/image/product.template/12010/image_1920?unique=b6a0983
(0 review)

SKU : FNM-803B
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FNM-803B

104.95 104.95 USD 104.95

104.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Button-Triggered Sound File Upload All-in-One Kit Terminal Block Connection Built-in Amplifier Additional Memory Capable In Enclosure

ALSO AVAILABLE IN PIR MOTION TRIGGER, CLICK HERE

Features:

  • Adopts anti-corrosion and anti-rust thickened zinc alloy enclosure.
  • Rainproof, windproof and dust-proof, can be used for outdoor purposed application scenarios.
  • Built-in a high quality MP3 player with 8MB flash memory.
  • Supports inserting USB flash drive and micro SD card as the extended storage devices.
  • Supports max. 32GB USB flash drive and max. 32GB micro SD card.
  • 7 trigger inputs available and they can be connected with as many as 7 buttons/switches/relays, etc.
  • Equipped with pluggable terminal blocks, and easy to connect.
  • Supports 8 types of trigger modes and each trigger mode can be set easily through a text document.
  • Built-in a class D 20 Watts amplifier and the sound is loud and clear.
  • Uploading audio files by connecting the micro USB port of the device to computer with a USB data cable ( cable Included).
  • Sound volume is adjustable through turning the potentiometer at the bottom of the device.
  • Two options available (through the DC power jack or the power supply terminal block) to power the device.
  • Comes with mounting brackets and Micro USB cable included.

Technical Parameters:

  • Technical Parameters
  • Working Voltage: 9-24V DC
  • Working Current: ≤ 2000mA
  • Standby Current: ≤ 10mA
  • Audio Format: MP3 (Bit rate: 8-192Kbps)
  • Audio Output Power: ≤ 20Watts
  • Protection Grade: IPX6

Please note that this version ( BUTTON TRIGGER ) does not come with a power supply, The TOL-15313 is a direct hookup if you plan on supplying power through the barrel jack and not the terminals.
