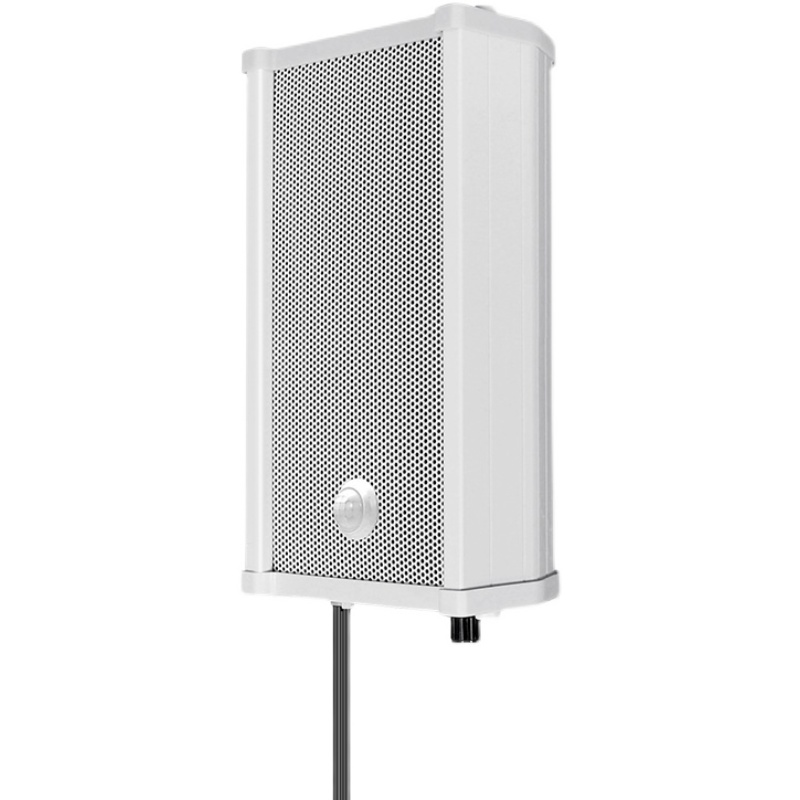

Rainproof PIR Motion Sensor Activated Audio Player

(0 review)

SKU : FNM-803
Quantity on Hand : 7
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

129.95 129.95 USD 129.95


  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Rainproof and dustproof, suitable for outdoor purposed application scenarios.
Adopts passive infrared detection technology.
The detection distance of the PIR motion sensor is up to 5 meters.
The detection angle of the PIR motion sensor is 120 degrees fan-wise.
Built-in, high-quality MP3 player with 1GB flash memory.
Built-in Class D 20 Watts amplifier and the sound quality is great.
Load a single MP3 file or multiple MP3 files onto the player on a PC through a USB connection.
Optional to play a sound in order or at random after each activation when multiple files are available.
Sound volume is adjustable by turning the potentiometer at the bottom of the device.
Powered through a DC9-24V supply.


  • Working Voltage: 9-24V DC
  • Working Current: ≤ 2000mA
  • Standby Current: ≤ 10mA
  • Audio Format: MP3 (Bit rate: 8-192Kbps)
  • Audio Output Power: ≤ 20Watts
  • Detection Range: ≤ 5 m (120 ° angle)
  • Protection Grade: IPX6
