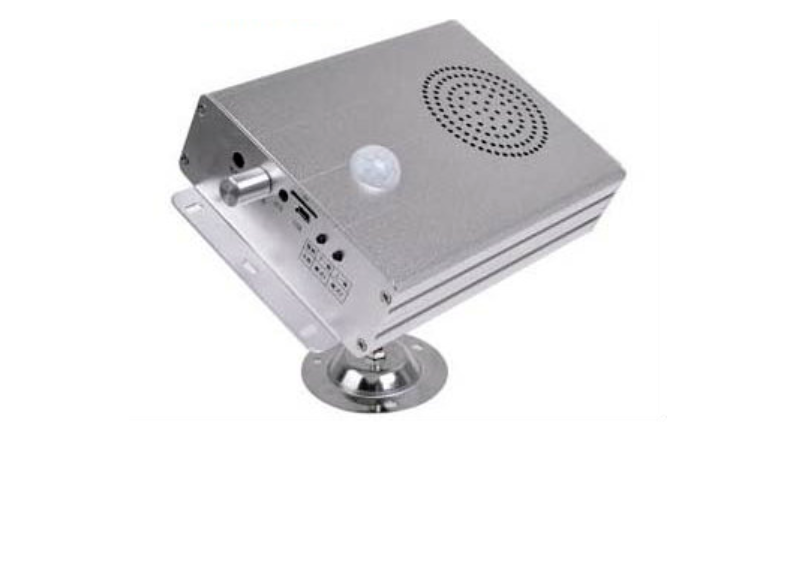

High Quality PIR Motion Sensor Activated Audio Player

https://electronics123.odoo.com/web/image/product.template/8246/image_1920?unique=ce68858
(0 review)

SKU : FNM-705
Quantity on Hand : 9
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FNM-705

89.99 89.99 USD 89.99

89.99

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Motion-Triggered Sound File Upload All-in-One Kit Built-in Amplifier Headphone Audio Output Additional Memory Capable Best Seller In Enclosure

Features:

  • Uses a high-grade silver aluminum enclosure with a set of mounting brackets.
  • Adopts the passive infrared detection technology, and the detection range is up to 5 meters.
  • Built-in a high-quality MP3 player with great audio output.
  • Works with most Windows, Mac, and Linux systems.
  • Supports micro SD card (TF card) and have built-in 4MB internal flash memory for storage. Micro SD card NOT included.
  • Supports two triggering modes: single repeat mode and all loop repeat mode.
    • Single repeat mode: plays the same audio file after each triggering.*
    • Loop repeat mode: plays the next audio file in the loop after each triggering.*
    • *Triggering DURING playback of sound file in either mode, will be ignored and the active sound file will finish playing.
  • Equipped with a potentiometer for power-on/off and volume adjustment.
  • Built-in a 20W loudspeaker to make sure the volume is loud enough.
  • 3.5mm audio output jack (mono) for connection to an amplifier or active speaker
  • Power Adapter included (100-240V to 12VDC)
  • USB Cable included (Type A male to mini USB port)
  • Pivoting mounting foot included
  • For indoor use only
  • Dimensions: 163mm x 123mm x 46mm

 Applications:

  • An automatic interpreter applied in museums, galleries, exhibition halls, etc.
  • Advertising in shopping malls, chain shops, supermarkets, elevators, etc.
  • As a voice announcer to deliver voice messages in banks, factories, schools, hospitals, etc.
  • Voice guidance for blind people in public areas.
  • As an audio reminder at home for people suffering from amnesia.
  • As a voice alarm to warn people in some special occasions
