FAQ for High Quality PIR Motion Sensor Activated Audio Player ( FNM-705 )

Q1: What bitrate must the MP3 file be?

A1:   The module supports bit rates of 32 Kbps, 64 Kbps, 96 Kbps, 128 Kbps, 256 Kbps and 320Kbps for MP3 files. Other bit rates for MP3 files could cause problems with playback.

Q2: What sampling rate must the .WAV file be?

A2:   The module supports sampling rates of 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 or 48 KHz for .WAV files. Other sample rates for .WAV files could cause problems with playback.

Q3: The sound files that I put onto my device won't play when using a Mac to put the sounds onto the device.

A3: Please see this link that a customer wrote up about a past sound module that they used and that they used the same information to get this version to work. Here Is a link to the article as well as the software that he mentions

Article - https://appleause.com/2010/09/29/ultraprojector-and-mac/

App - https://macpaw.com/cleanmydrive

Q4: My computer isn't recognizing the board when I plug it into my computer

A4: Some micro USB cords can only transport power through them, so it is important to make sure the cable can transfer both power and data. In other words, some cables are only good to charge devices, but cannot communicate with them. First thing to do is test if the cable can not only charge, but also communicate with other devices such as a phone, if not try a different cable.

Q5: The sound plays back fine on my computer but doesn't play/sound well on the device

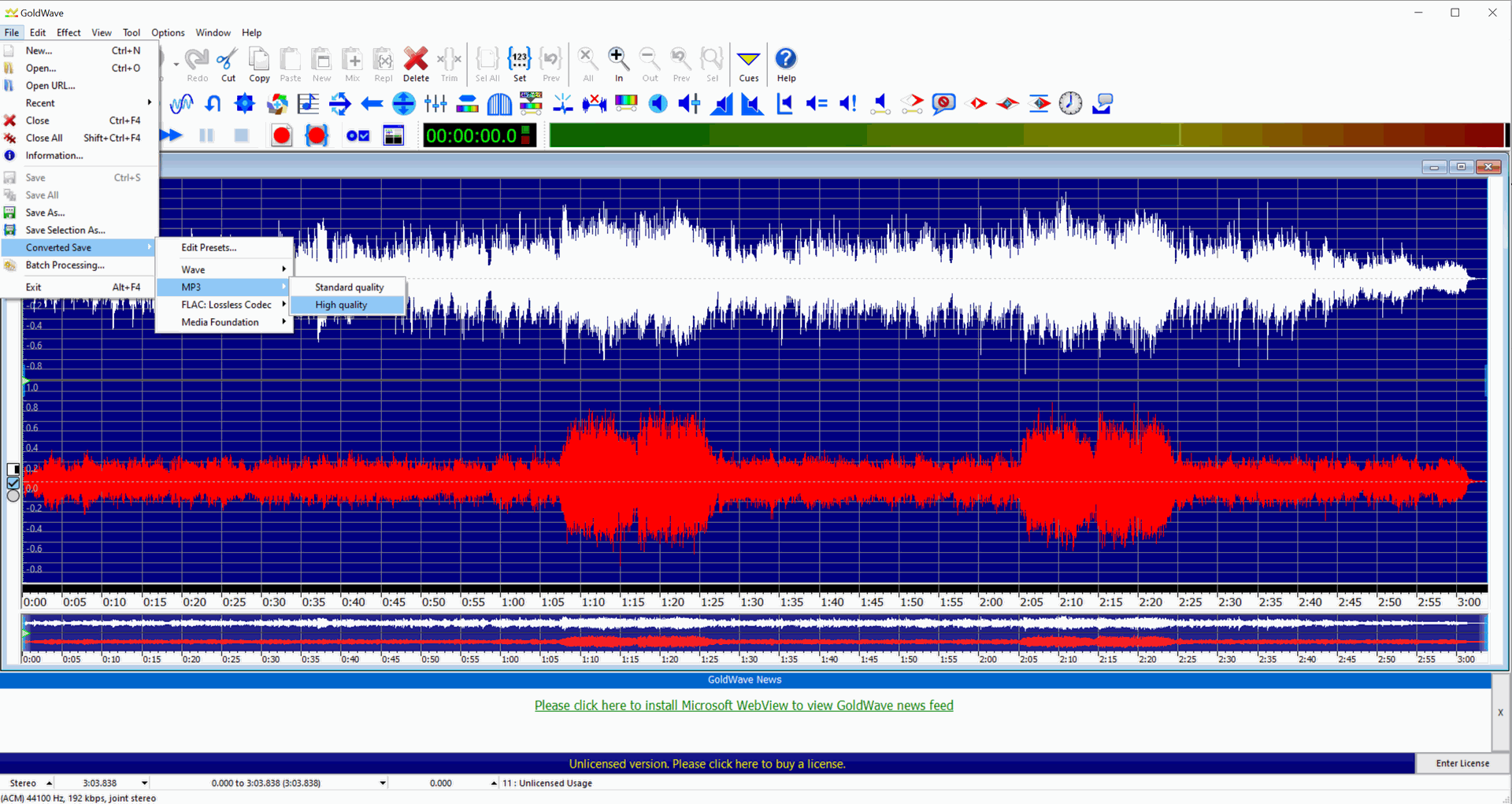

A5: This happens a lot when the sound is downloaded from websites such as Apple Music, Spotify, and Amazon Music. Websites often add something small to the file that confuses the sound processor on the board and you will need to convert the file using a free software called Goldwave. You will need to use the "converted save" and the "MP3 High Quality" Please see the image below on what settings to use. This should fix your sound files and allow them to work on the sound module.
