Mini PIR Motion Activated Audio Player
SKU : FNP-703A
Quantity on Hand :
41
Skill Level : Assembled and Tested
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $50
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Features:
- Small and exquisite with MP3 high-quality audio output.
- Equipped with a PIR motion sensor to trigger audio playback, and detection range can be up to 4 meters.
- Works with most Windows, Mac, and Linux systems.
- Incorporates 2MB built-in flash memory as the standard internal memory.
- Uses micro SD card or 2MB built-in internal flash memory as storage. (choose one of both).
- Reads audio files directly from micro SD card (up to 32 GB). (micro SD card sold separately see below)
- To copy sound files to the built-in flash memory you need a micro SD card. You copy the audio files previously loaded on to a micro SD card to the built-in flash memory. (The micro USB port is only used as an alternative way to power the device - instead of using batteries if desired)
- Supports two triggering modes:
Mode 1: You add multiple sound files to the unit. The unit will play the next sound with each activation.
Mode 2: Play the same sound with each activation.

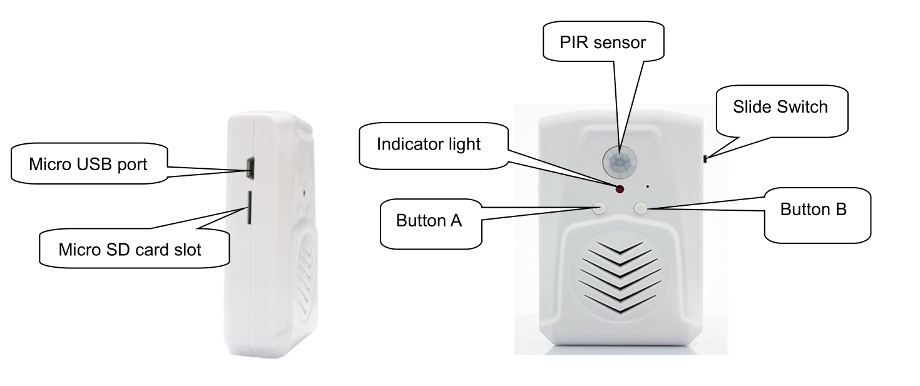

(The module is switched between Mode 1 and Mode 2 with a long press (3 seconds) of button A) - Supports two power supply methods:
3 x AAA alkaline batteries (not included) or
External power adapter through the micro USB port. - Two-level sound volume adjustment.
- For indoor use only.
- Dimension: 60*90*26.60mm
- Pivoting wall mounting foot included
Applications:
- Used for promotions or adverting at supermarkets, shops and etc.
- Can be as a smart bell, door welcome greeter, security alarm, audio reminder and more!
Operation Guide
Electrical Parameters
