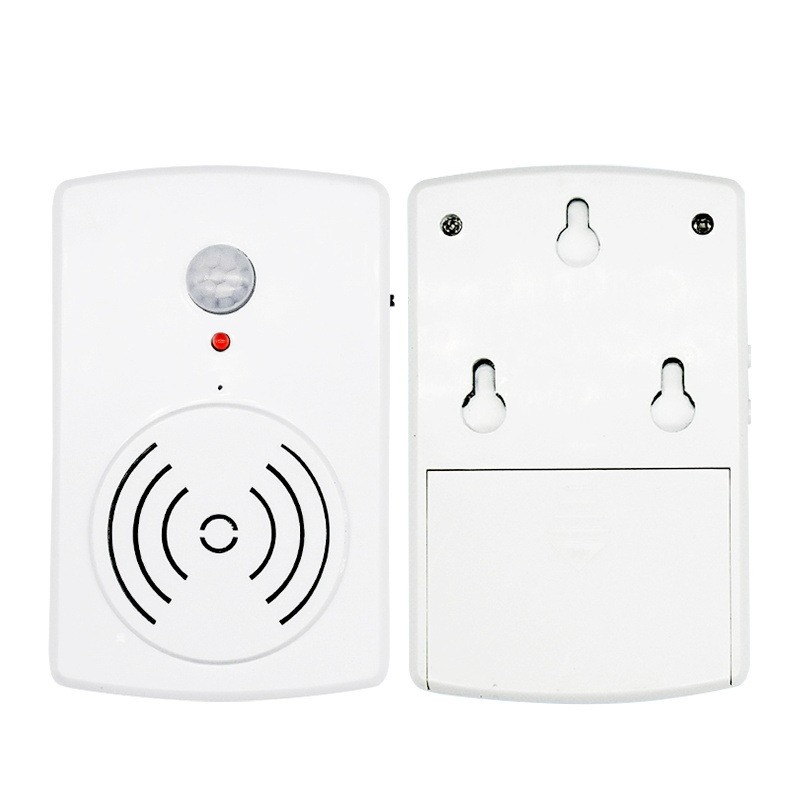

Mini PIR Motion Sensor Activated Audio Player (USB Recordable)

https://electronics123.odoo.com/web/image/product.template/11566/image_1920?unique=043f4f5
(0 review)

SKU : FNP-704
Quantity on Hand : 12
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FNP-704

18.45 18.45 USD 18.45

18.45

Not Available For Sale

This combination does not exist.

Add to cart
Motion-Triggered Sound File Upload All-in-One Kit Built-in Amplifier Best Seller In Enclosure

Features:

  • Small and exquisite with MP3 high-quality audio output.
  • Adopts a PIR motion sensor to trigger audio playback, and the detection range is up to 4 meters.
  • Built-in a 4Mbytes flash memory that can store about 200 seconds of MP3 files (128Kbps).
  • Update audio files on the computer using a USB data cable. It works like a USB flash drive on the computer. No need for any software
  • Works on most Windows, Mac, and Linux computers
  • Supports two triggering modes: all loop repeat mode and single repeat mode.
  • Built-in 1W 8ohm speaker. The sound is clear and loud.
  • Two-level sound volume adjustment.
  • Supports two power supply modes: 3 pieces AAA alkaline batteries or an external power adapter through the micro USB port
  • Mounting holes are available on the back, and with a holder, it's easy to install.
  • Dimension: 60mm x 95mm x 31mm

Technical Specifications

  • Working Voltage: 3.7-5V DC
  • Working Current: ≤150mA @ high Volume
                                   ≤120mA @ low Volume
  • Standy Current: ≤30uA
  • Distance of Detection: ≤4 meters
  • Angle of Detection: 120 degrees
