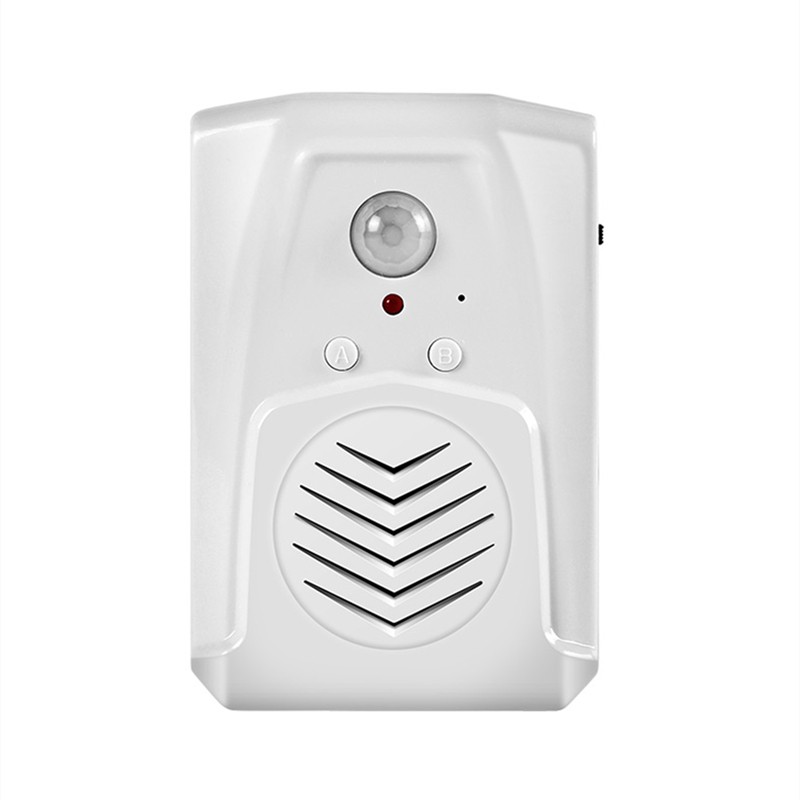

Mini PIR Motion Activated Audio Player

https://electronics123.odoo.com/web/image/product.template/8221/image_1920?unique=57256c6
(0 review)

SKU : FNP-703A
Quantity on Hand : 19
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FNP-703A

17.95 17.95 USD 17.95

17.95

Not Available For Sale

This combination does not exist.

Add to cart
Motion-Triggered Sound File Upload All-in-One Kit Built-in Amplifier Additional Memory Capable In Enclosure

Features:

  • Small and exquisite with MP3 high-quality audio output.
  • Equipped with a PIR motion sensor to trigger audio playback, and detection range can be up to 4 meters.
  • Incorporates 4MB built-in flash memory as the standard internal memory.
  • Uses a micro SD card or 4MB built-in internal flash memory as storage. (choose one or both).
  • Reads audio files directly from the micro SD card (up to 32 GB). (micro SD card sold separately see below)
  • To copy sound files to the built-in flash memory you need a micro SD card. You copy the audio files previously loaded onto a micro SD card to the built-in flash memory. (The micro USB port is only used as an alternative way to power the device - instead of using batteries if desired)
  • Supports two triggering modes:
    Mode 1: You add multiple sound files to the unit. The unit will play the next sound with each activation.
    Mode 2: Play the same sound with each activation.
    (The module is switched between Mode 1 and Mode 2 with a long press (3 seconds) of button A)
  • Supports two power supply methods:
    3 x AAA alkaline batteries (not included) or
    External power adapter through the micro USB port.
  • Two-level sound volume adjustment.
  • For indoor use only.
  • Dimension: 90 x 60 x 26mm
  • Pivoting wall mounting foot included

Applications

  • Used for promotions or advertising at supermarkets, shops and etc.
  • Can be as a smart bell, door welcome greeter, security alarm, audio reminder, and more!

Specifications:

Power Input
DC3.3-5V Regulated Power Supply
Working Current
Standby State  ≤60uA

Playing State ≤130mA
Audio Format
MP3
Audio Output Power
8Ω/1W(typical
Detection Range
≤4m(120°angle)
