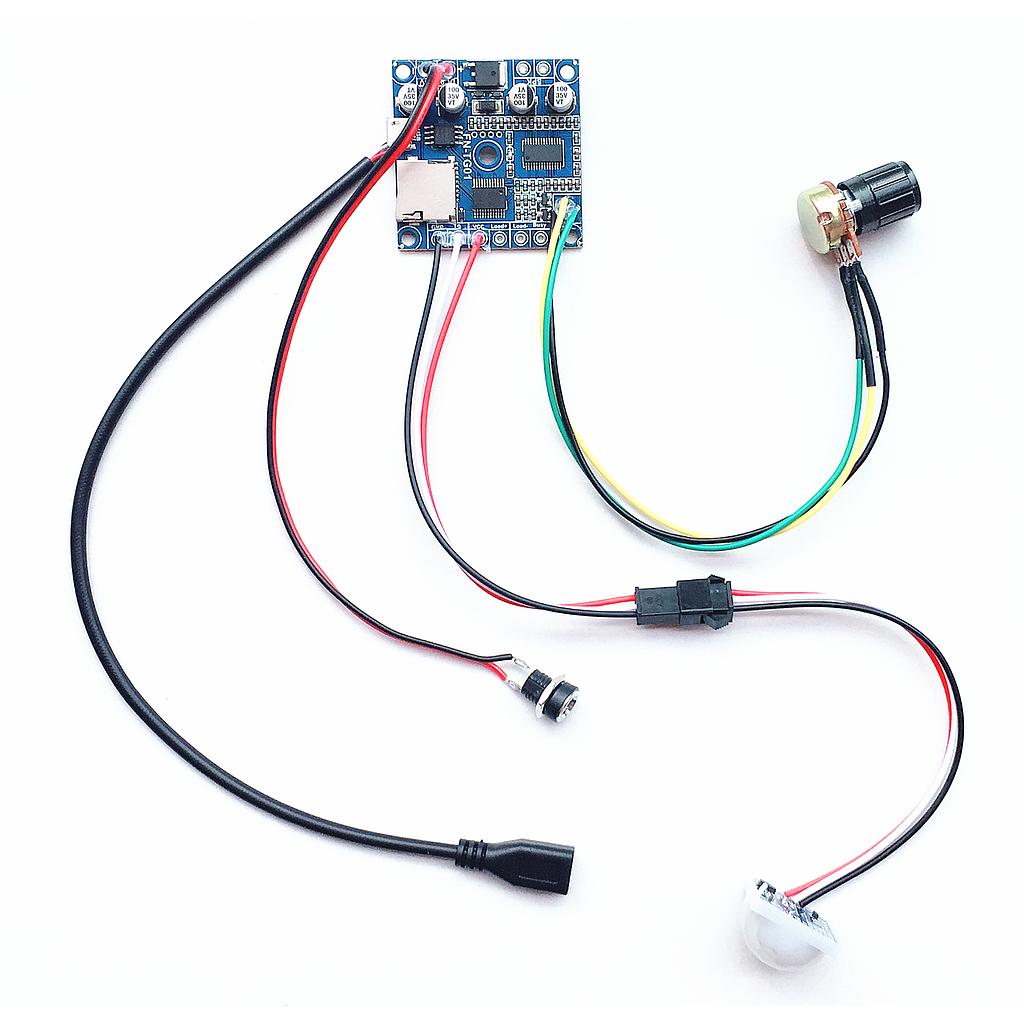

Motion Sensor MP3 Player Module with Load Output (PIR, Power connector, POT and USB extention attached)
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
Equipped with a high-quality audio decoder chip.
Supports MP3 and WAV audio files.
Built-in 8MB flash memory, which is able to store a total of about 8 minutes long MP3 files of 128Kbps.
Equipped with a micro SD card holder, and supports max. 32GB micro SD card.
Solder pads for connection with external USB flash drive available on the back of the board.
Update audio files easily through the micro USB port connected with PC like using a USB drive.
Built-in a class D 15Watts amplifier IC that is possible to drive a 10Watts 8ohms or 15Watts 8ohms speaker.
Solder pads for audio signal out to external amplifier available on the back of the board.
Adjustable sound volume through the blue potentiometer.
Can be activated with a PIR sensor, microwave sensor, switch or relay.
Supports multiple files that can be played back sequentially OR in random order
When a sound is playing, there is simultaneously a load output (Up to 200mA max), which can directly drive a warning light, LED light or LED strip.
Working Voltage: 9-24V DC
Working Current: ≤2000mA
Consumption Current at Playback: ≤500mA (12V DC)
Standby Current: ≤15mA
Flash memory size: 8Mbytes
Audio format: MP3 or WAV
