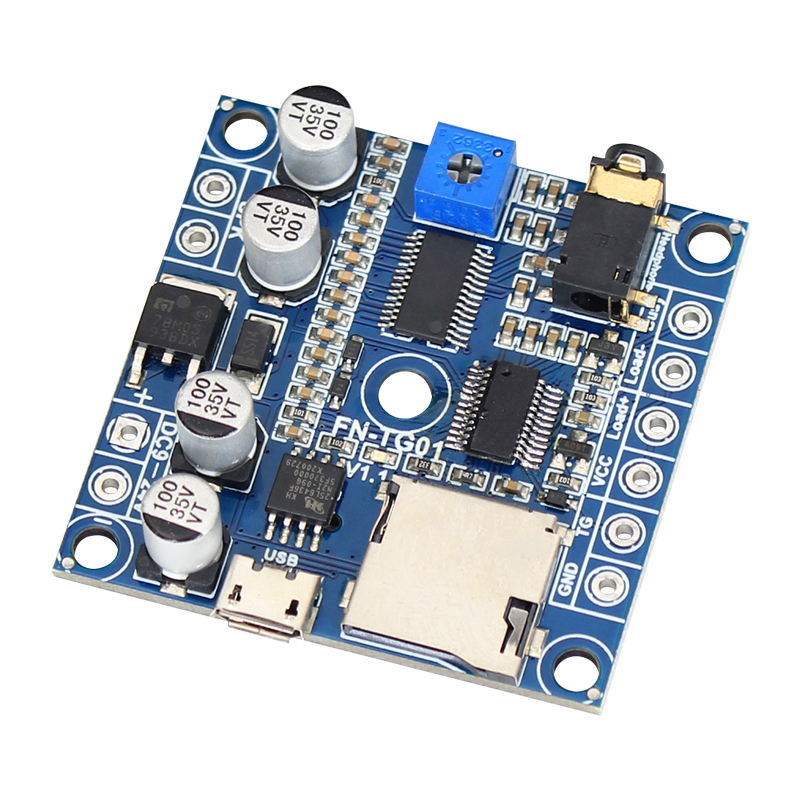

Motion Sensor or Switch Activated MP3 Player Module with Load Output (Solder Pads)
(0 review)

Quantity on Hand : 26
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


19.95 19.95 USD 19.95


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Motion-Triggered Button-Triggered Sound File Upload Solder Pad Connection Built-in Amplifier Headphone Audio Output Additional Memory Capable Load / Busy Output

Also available with terminal blocks


  • Equipped with a high-quality audio decoder chip.

  • Supports MP3 and WAV audio files.

  • Built-in 8MB flash memory, which is able to store a total of about 8 minutes long MP3 files of 128Kbps.

  • Equipped with a micro SD card holder, and supports max. 32GB micro SD card.

  • Solder pads for connection with external USB flash drive available on the back of the board.

  • Update audio files easily through the micro USB port connected with PC like using a USB drive.

  • Built-in a class D 15Watts amplifier IC that is possible to drive a 10Watts 8ohms or 15Watts 8ohms speaker.

  • Solder pads for audio signal out to external amplifier available on the back of the board.

  • Adjustable sound volume through the blue potentiometer.

  • Can be activated with a PIR sensor, microwave sensor, switch or relay.

  • Supports multiple files that can be played back sequentially OR in random order

  • When a sound is playing, there is simultaneously a load output (Up to 200mA max), which can directly drive a warning light, LED light or LED strip.

Technical Parameters:

  • Working Voltage: 9-24V DC

  • Working Current: ≤2000mA

  • Max Load Output: 200mA (For larger load attach a relay via the Busy Signal Output)

  • Consumption Current at Playback: ≤500mA (12V DC)

  • Standby Current: ≤15mA

  • Flash memory size: 8Mbytes

  • Audio format: MP3 or WAV

  • PCB size: 45mm x 45mm

Trigger Functions

  • If there are multiple files in the internal memory, after each activation, the player will play an audio file at a time in sequence (from the first file to the last one in the loop)  This is the default setting for all boards
  • If you want the player to play an audio file randomly each time among all the files, you need to create a simple configuration file and put it together with the audio files in the root directory of the memory with a "2" in the config file.  That will play the sounds on the board in random order.
  • If you would like to have the board loop a sound you must edit the config file to have a "3" after that when you hold the button down ( Ground out the GND and TG terminals ) and apply power. Then it will loop the sounds on the board ( It will loop the sounds in the order as they are on the board [ie 001, 002,  Etc..] )

PIR activation: PIR must output a signal of 3.3V or lower to the MP3 module.
Suitable Passive InfraRed detectors are: PIR-001 and PIR-002
 Switch / Relay activation
