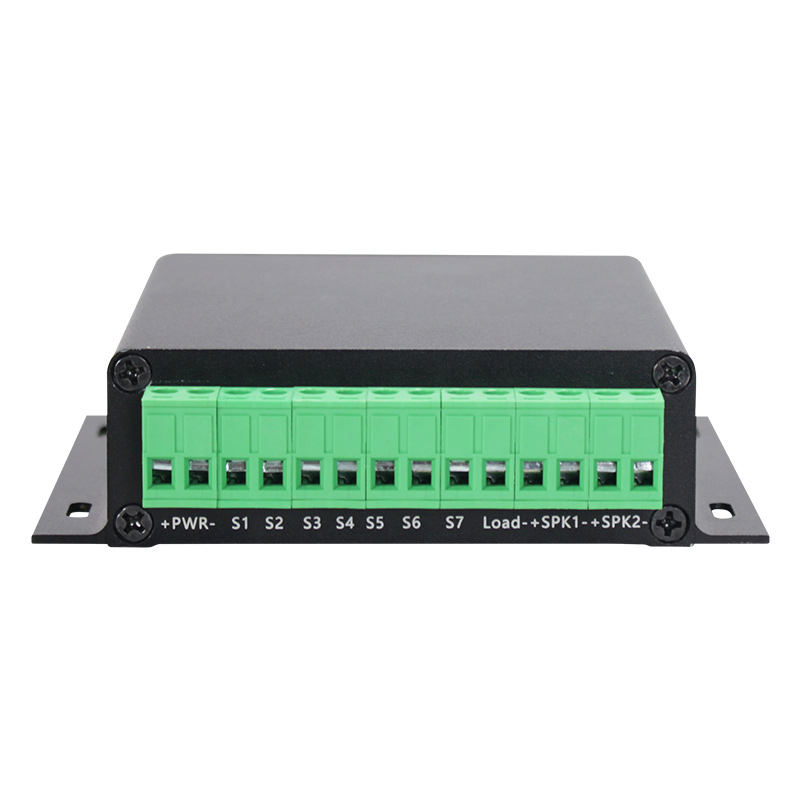

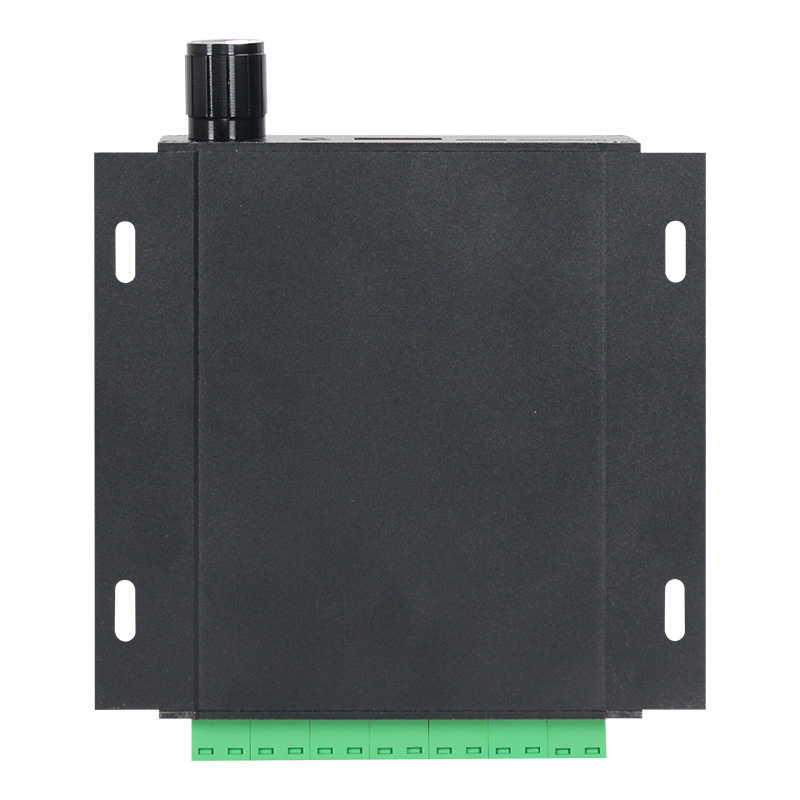

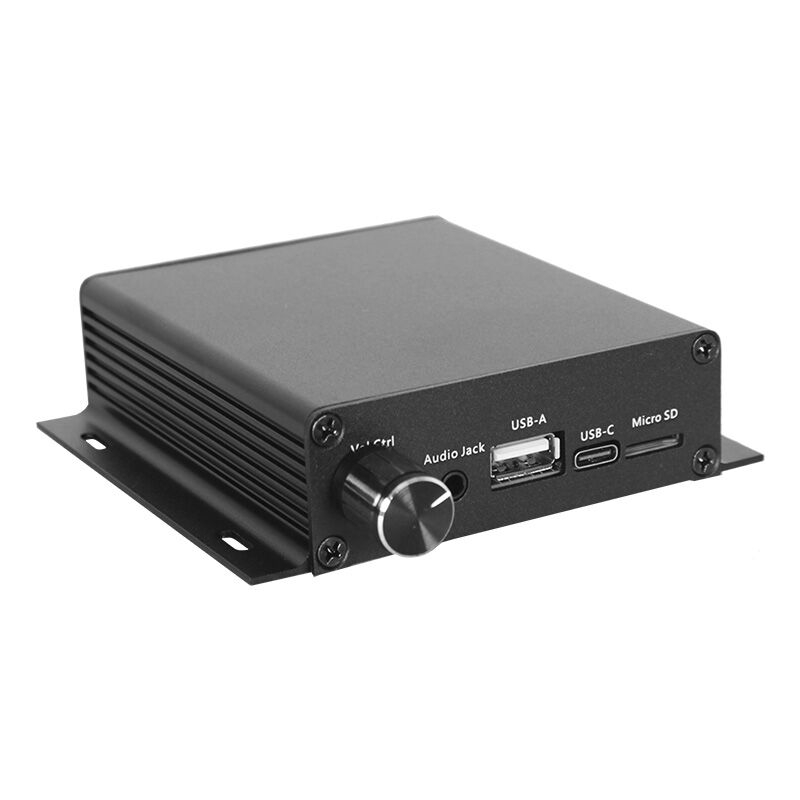

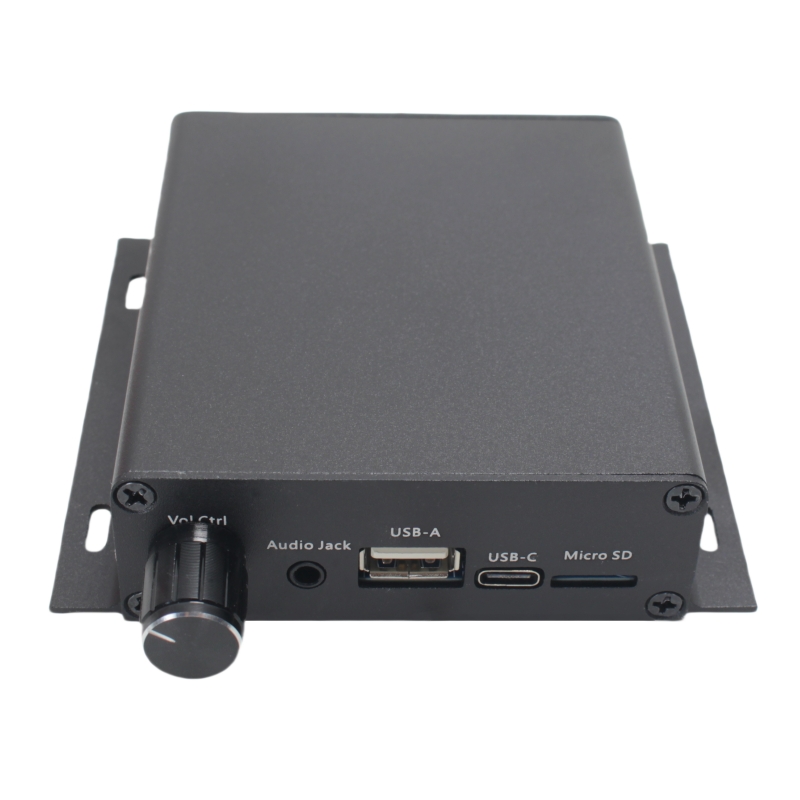

Industrial 50W MP3 Player 5 Input Trigger + RS485 Stereo Audio Player for Museums and Talking Displays (Negative Trigger)

(0 review)

SKU : FN-T718-5RS
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

Button-Triggered Sound File Upload Terminal Block Connection Built-in Amplifier Headphone Audio Output Additional Memory Capable Load / Busy Output In Enclosure Stereo Output Random Playback Feature
$ 55.95 $ 55.95

  • WeightMajor
  • WeightMinor
Add to cart

NOTE: This is the Negative trigger + RS485 version.
The FN-T718 is an industrial MP3 player designed to provide stereo audio output for museum exhibits, talking displays and other industrial/commercial applications. It has not only a built-in 8MB flash memory but also a slot for a micro SDcard as well as a USB connector for a USB pen drive that hold the sound file(s), and connectors for up to 5 push buttons for sound activation, while ports 6 and 7 are used for RS485 communication. Upon activation the unit will immediately play the sound file once (by default) and become ready for the next activation. And it supports 10 trigger modes to meet different needs in different applications. A trigger mode can be set with a config file easily. Besides, it's possible to switch on an external LED light during playback of a sound file.
Features:
  • Supports inserting USB flash drive and micro SD card as the extended storage devices.
  • Supports max. 32GB USB flash drive and max. 32GB micro SD card.
  • 5 negative trigger inputs available, and ports 6 and 7 are used for RS485 communication.
  • Supports 10 trigger modes and each trigger mode can be set easily through a config file (text document).
  • Built-in a 50W*2 class D amplifier and the audio output is powerful.
  • Uploading audio files by connecting the Type C USB port of the device to computer with a USB data cable.
  • Sound volume is adjustable through turning the volume knob.
  • Able to drive an external equipment like a warning light or a motor simultaneously when it is playing a sound.
  • Equipped with a 3.5mm audio output jack that can be connected to an external amplifier or an active speaker.
  • Adopts solid and durable aluminum alloy case.
  • Industrial grade design and strong anti-jamming capability.
Technical Parameters:
  • Working voltage: 12-24V DC
  • Working current: ≥8500mA @12V (when it has two 50W 8 ohm speakers)
    ≥4250mA @24V (when it has two 50W 8 ohm speakers)
  • Power consumption: ≤100W
  • Flash memory size: 8MB
  • Audio format: MP3 or WAV
  • Product Dimensions: 105mm x 98mm
FN-T718 5 trigger RS485 connection example

Documentation and Downloads
