20 Channel Stereo MP3 Sound Board with 2x25W Amplifier (V1.1)

(0 review)

Quantity on Hand : 4
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


64.95 64.95 USD 64.95


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Button-Triggered Sound File Upload Terminal Block Connection Built-in Amplifier Headphone Audio Output Additional Memory Capable Load / Busy Output Serial Control 10 Buttons or More

    Also Available in Miniature Size

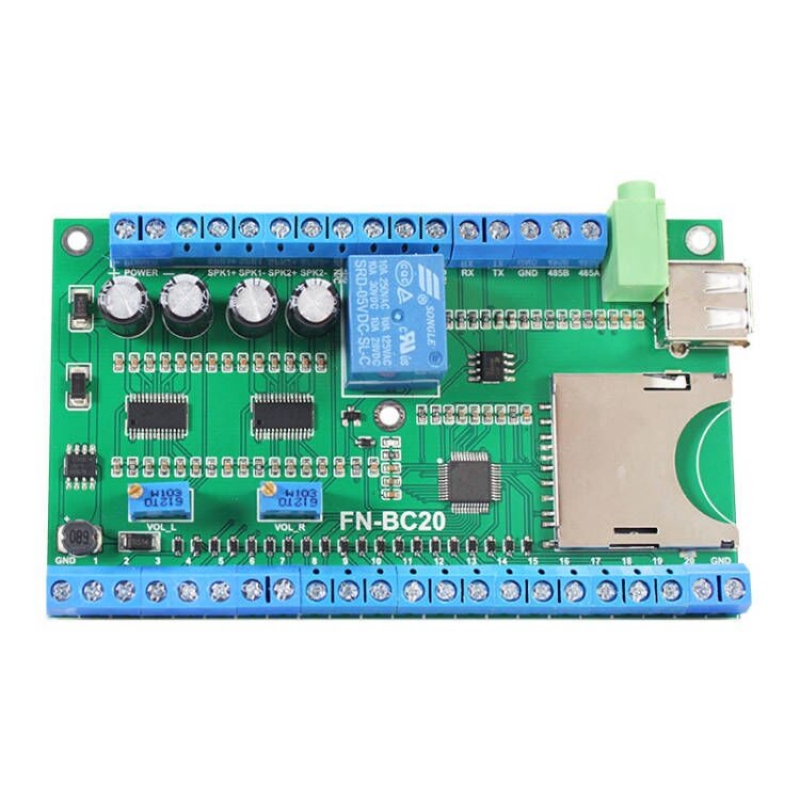

    Description: FN- BC20 is a high-quality MP3 soundboard, equipped with an onboard 2x 25W class D amplifier, the audio player can directly drive 2 pieces of 10-25W loudspeakers.The soundboard can be controlled by 20 separate buttons hooked up to the ‘one-on-one’ inputs terminals, or RS485 serial port. Great audio output, industry-grade design, and strong anti-jamming capability make it possible to be used for many different applications.


    • Built-in a high-quality 24bit of the audio decoder with stereo audio output.
    • Works with most Windows, Mac, and Linux systems
    • Supports to play audio files of MP3 and WAV formats.
    • On-board a high-quality 2x25 Watt class D amplifier to directly connect with two 8 ohm speakers of 10 to 25 Watts, for the left channel and right channel.
    • Built-in 16MB SPI flash memory and supports max. 32GB micro SD card. (1GB SD Card included)
    • Supports RS485 serial mode and button control mode.
    • In button control mode, playback of the ‘one-on-one' associated audio files are triggered by a negative pulse to any of the 20 input terminals.
    • In button control mode, possible playback of 255 MP3/WAV audio files per 20 ‘one-on-one’ associated folders through a negative trigger.
    • In button control mode, Four selectable triggering modes are provided through a configuration file.
    • Supports a 3.5mm stereo audio output jack to an external amplifier.
    • Separate volume control for each sound channel (only for onboard amplifier).
    • Wide range for power input DC (12V - 24V).
    • Industry-grade design and strong anti-jamming capability.
    • Size: 115mm (L) x 90 mm (W) x 40mm (H)

    Technical Parameters:

    • Power input: DC12-24V
    • Rated output: 25W×2 (RL= 8Ω d=1%)
    • Noise Voltage: ≤50mV
    • Frequency response: 20-20KHz
    • SNR:≥ 90dB
    • Audio format: MP3 (128Kbps is preferable) or WAV

    Connection Example:

    The terminals A(+) and B(-) are used to connect with a RS485 controller, while K1 through K20 represent Normally Open (N.O.) manual buttons. Please refer to the connection example below.

    Make this module motion activated: External PIR Motion Sensor
