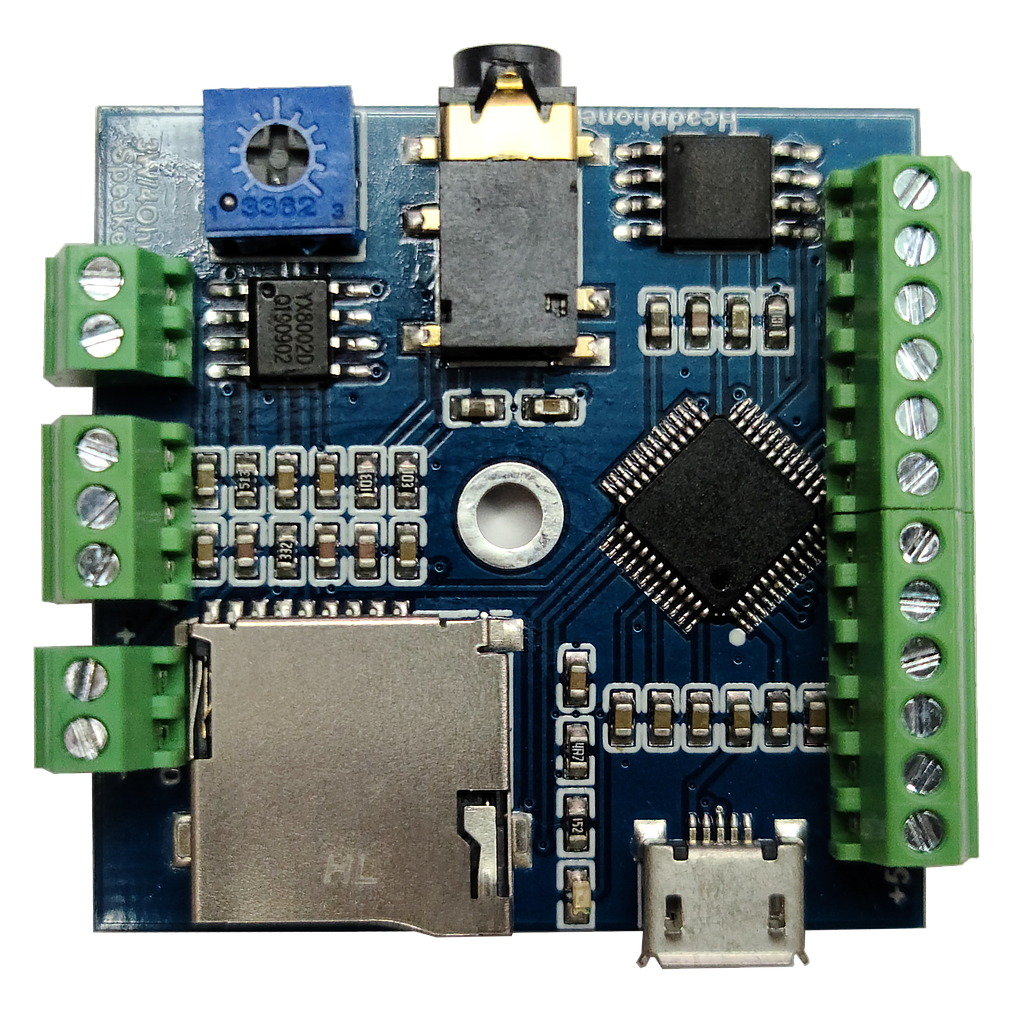

10 Buttons Triggered MP3 Player Board with 3W Amplifier and Terminal Block (v2)

https://electronics123.odoo.com/web/image/product.template/11583/image_1920?unique=6e20589
(0 review)

SKU : FN-BC10-TB
Quantity on Hand : 42
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FN-BC10-TB

21.95 21.95 USD 21.95

21.95

Not Available For Sale

    This combination does not exist.

    ADD TO CART

    Available with solder pads. Click here

    Features:

    • With terminal blocks for easy connections

    • With a high-quality audio decoder, supports MP3 and WAV audio formats.

    • Works with most Windows, Mac, and Linux systems

    • Sampling rates supported: 8/11.025/12/16/22.05/24/32/44.1/48(kHz).

    • 24 bit DAC output and supports dynamic range 90 dB and SNR 85dB.

    • Supports one-on-one 10 button trigger control mode and RS232 serial port control mode.

    • In button control mode, it plays back 10 sounds one-on-one.

    • Can play multiple sound files in random order per button

    • Supports multiple messages per button (random playback)

    • Uses a built-in 8 MBytes(64 Mbits) SPI flash memory for storage.

    • Supports Micro SD card as well (32GB max.)

    • Load audio files to the flash memory directly via the micro USB connecting with the computer like using a USB flash drive.  The flash memory/micro SD card works as a USB flash drive on a computer

    • Equipped with a mono 3 watts amplifier that can drive a 1-3 watts (4-8 ohms) speaker directly

    • Equipped with a 3.5mm audio jack for stereo output that can drive an earphone directly or connect with an external amplifier.

    • Supports signal of status change through the Busy output.

    • Adjustable sound volume with the potentiometer.

    • DC 5V power input. Also possible to supply the power via the micro USB port.

    • 5V power output available that can support power to an external device

    • PCB size: 40mmx40mm

    Technical Parameters:

    • Working voltage: DC 5V

    • Working current: ≤1000mA

    • Current at play status: ≤300mA

    • Standby current: ≤10mA

    • Power Consumption: ≤3W

    • On-board flash memory size: 8 MBytes(64 Mbps)

    • Audio format: MP3 and WAV

    Make this module motion activated: External PIR Motion Sensor
