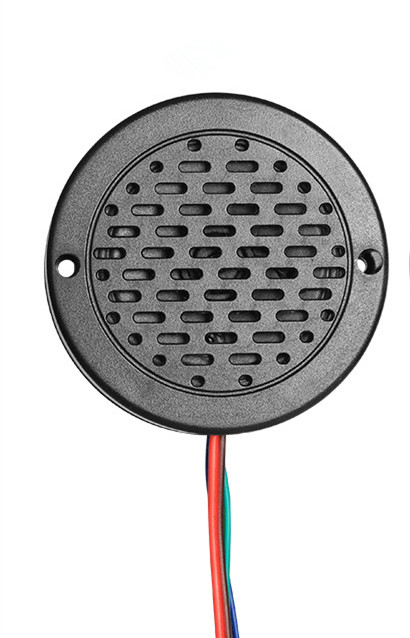

NOTE: This version comes with the black enclosure.
Features:
- Adopts exquisite ABS plastic enclosure
- Built-in a high quality audio decoder.
- Equipped with a 16MBytes flash memory that supports max. 16 minutes long MP3 files (at 128Kbps).
- Load MP3 files to the internal flash memory easily through the micro USB port connected with computer.
- 4 trigger inputs available and the trigger mode /function of each input can be set individually.
- Supports 7 different trigger modes, and 5 auxiliary modes.
- Trigger modes are set through a configuration file easily.
- Activate a sound through negative triggering / negative pulse / GND.
- Able to play one-on-one 4 sounds.
- Able to play multiple audio files per input channel (play next track in the associated folder).
- Able to start audio files automatically and play in loop, once it’s powered on.
- Equipped with a class D 5watts audio amplifier.
- Adjustable sound volume and wide range power input.
- Two colors (black and white) available.
- Portable design and easy to install.
- Dimensions: 70mm (diameter) x 20mm (height)
Technical parameters:
- Working voltage: 6V-30V DC
- Working Current: ≤1000mA
- Standby Current: 10mA
- Power Consumption: ≤5W
- Flash Memory Size: 16MBytes
- Audio Format: MP3 (32Kbps-192Kbps)
