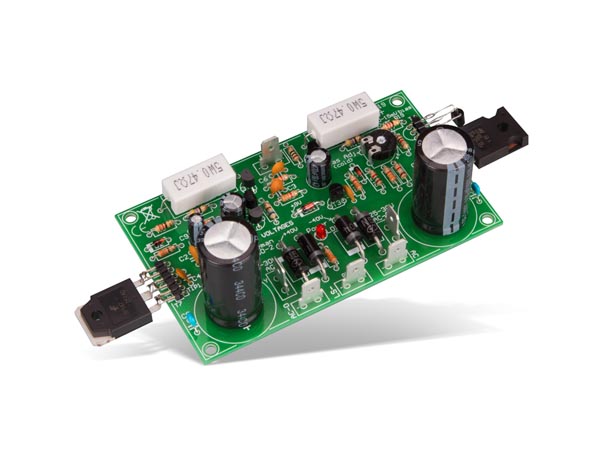

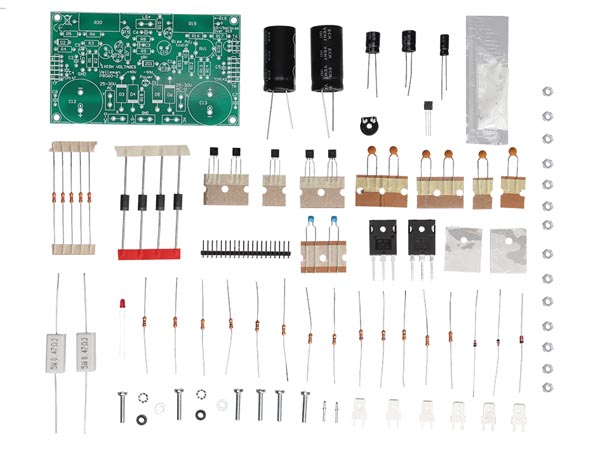

Discrete Power Amplifier 200W (Kit)

https://electronics123.odoo.com/web/image/product.template/4600/image_1920?unique=caa1d3e
(0 review)

SKU : WSAH8060
Quantity on Hand : 0
Skill Level : Kit - Complex Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WSAH8060

22.95 22.95 USD 22.95

22.95

Not Available For Sale

This combination does not exist.

Add to cart

Features:
  • Excellent value for money
  • Fully discrete design using Epitaxial Darlington transistors
  • DC supply circuit on board with LED indication
  • Ideal for active speaker system or sub-woofer, guitar amp, home theatre systems, instrument amp, etc.
  • Comes complete with transistor isolators, spacers and bolts overload and short-circuit protection
  • OPTIONAL HEATSINK REQUIRED: HSVM100
Specifications:
  • 200W music power @ 4 ohm load
  • 100W rms power @ 4 ohm load
  • 70W rms power @ 8 ohm load
  • Distortion: 0.02% @ 1KHz/10W
  • Damping factor: >800
  • Frequency response: 3Hz to 200KHz (-3dB)
  • Sensitivity: 0.6Vrms
  • Signal to noise ratio: 115dB
  • Power supply: 2 x 25-30Vac / 120VA - NEED TOROIDAL TRANSFORMER (TRD-236652)
  • PCB dimensions: 107x62mm (approx.)
  • Recommended heatsink (not included): HSVM100 (pre-drilled)
  • Recommended power transformer:
    • 230VAC input, 2 x 30VAC output: 12030
    • 115 / 230VAC input, 2 x 25VAC output: TR8040 (output power reduced by ±15%) (TRD-236652)
