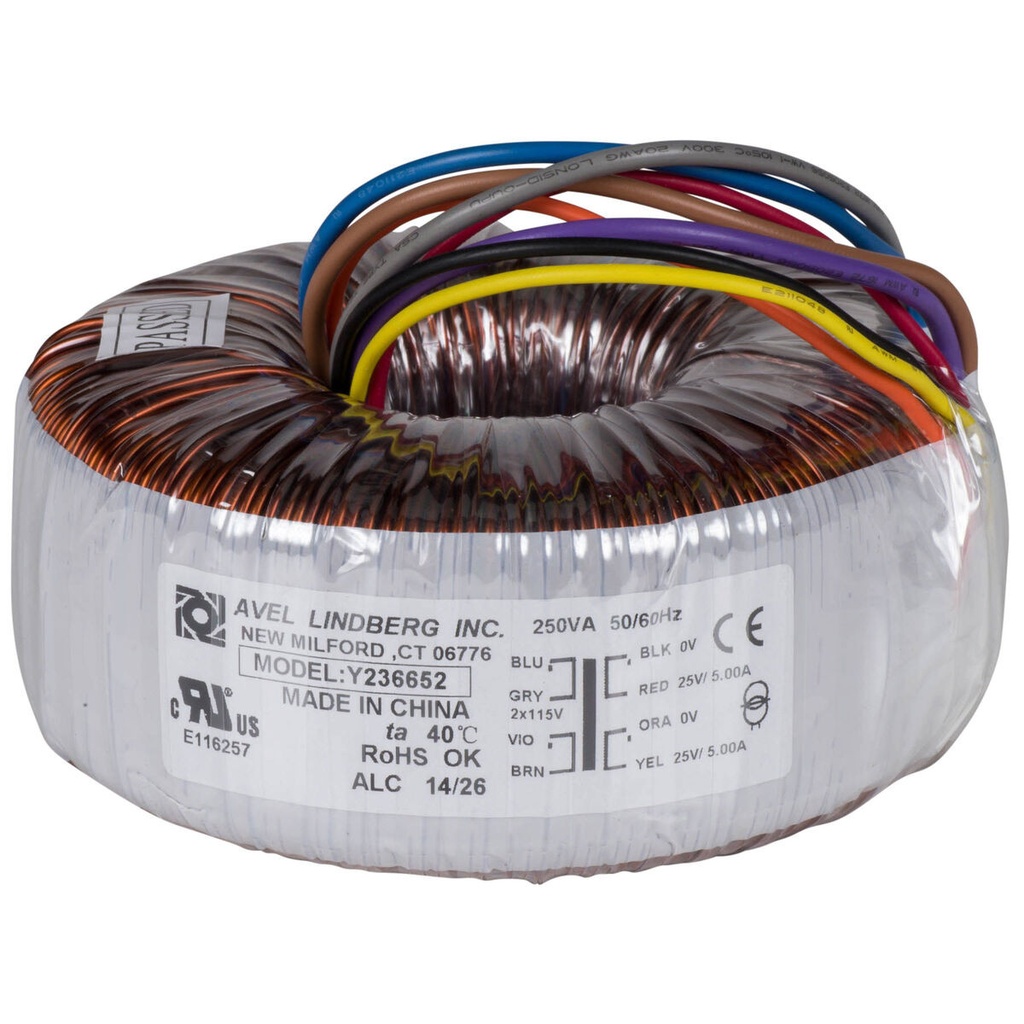

Avel Lindberg Y236652 250VA 25V+25V Toroidal Transformer

https://electronics123.odoo.com/web/image/product.template/11928/image_1920?unique=41011eb
(0 review)

SKU : TRD-236652
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

TRD-236652

89.99 89.99 USD 89.99

89.99

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

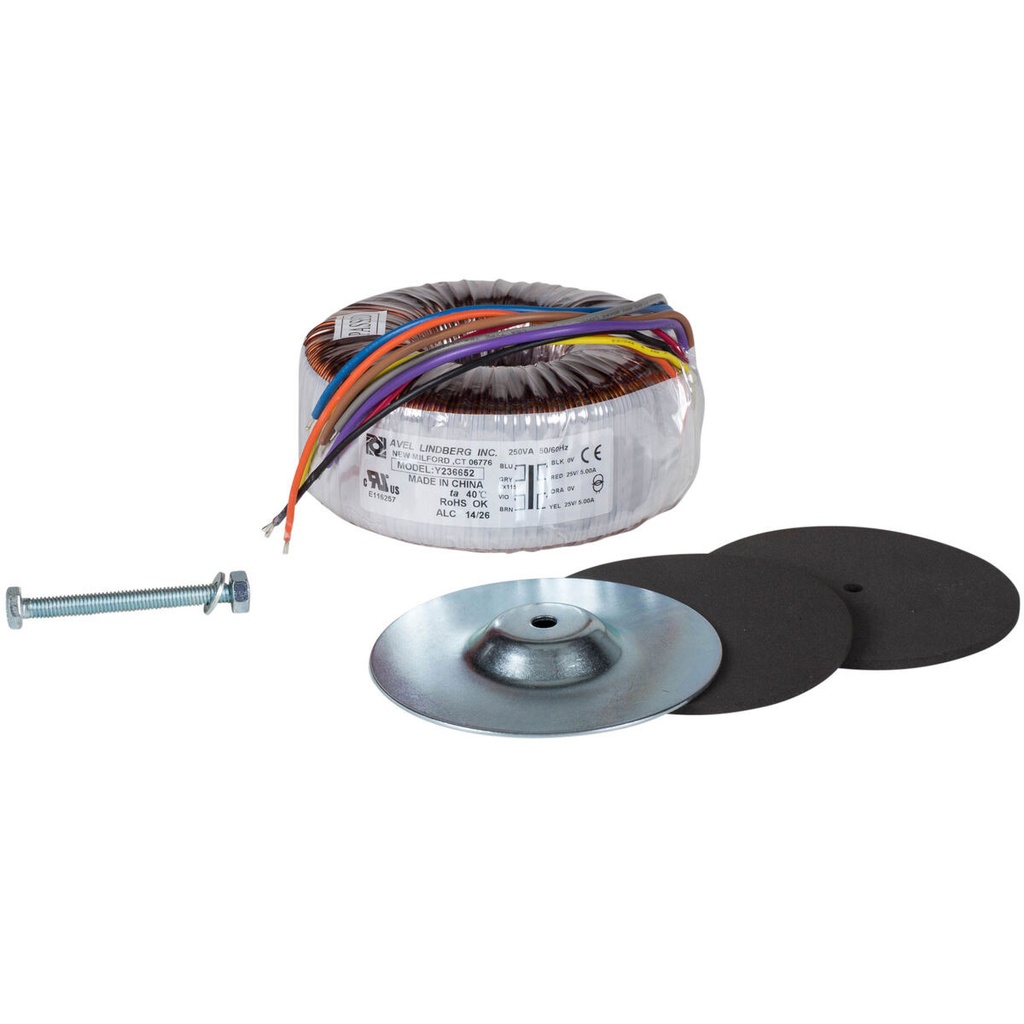

Description: AVEL's Y23 series power transformers offer exceptional value and performance for use in any high-quality power supply. All Y23 transformers are wound with heavy gauge copper and are wrapped with polyester tape. Meeting all major industry standards, these include double-insulated primary leads and a mounting kit with plate, pads, nut, and bolt. Other features include: 3% secondary tolerance at full load, 6" stranded copper leads with PVC insulation, and UL506/ CSA 22.2 and CE certifications

Specifications:

  • Primaries: 115V + 115V

  • Frequency: 50/60 Hz
  • Load Capacity: 250 VA
  • Secondary Voltage: 25V + 25V

  • Dimensions: 4.5" D x 2.0" H

  • Weight: 4.9 lbs

    Documentation and Downloads
