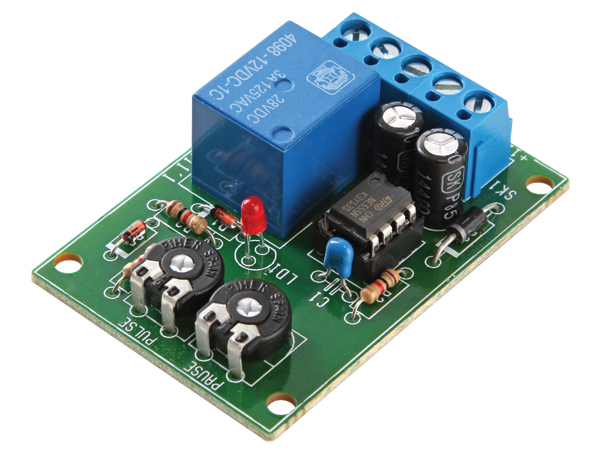

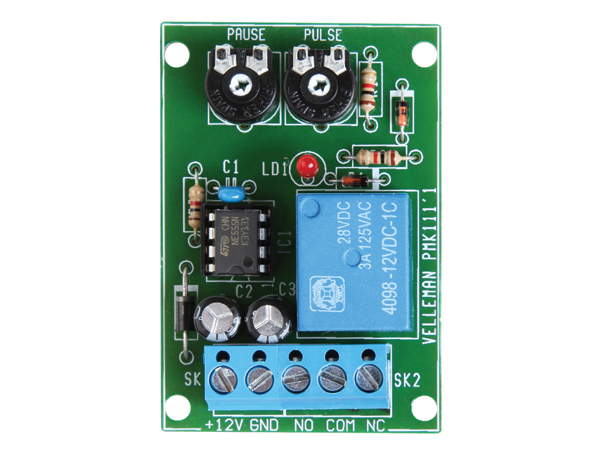

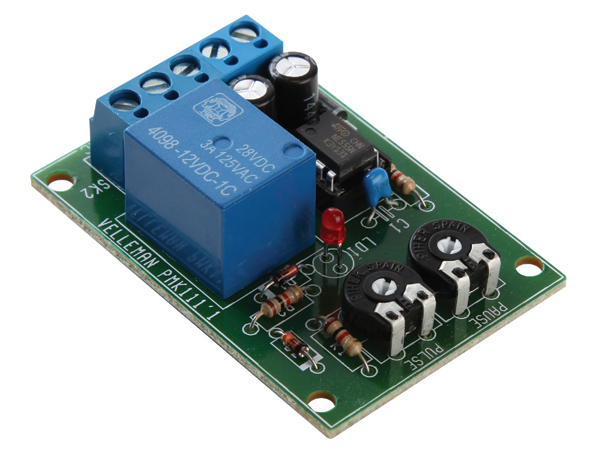

Description: General purpose pulse - pause timer for various interval timer automations. For intermittent operation of circuits and equipment.
- Blinking light, warning light
- Video/photo single frame shooting
- Slide projector control
- Miniature models applications
- Automated testing
- Automated aging tests
- Output relay with NO / NC* contact: 3A
- Pulse time adjustable: between 0.5 and 5 sec.
- Pause time adjustable: between 2.5 and 60 sec.
- (Because of the NO / NC relay contacts, a pulse time of 2.5 to 60 sec and pause time of 0.5 to 5 sec. can also be obtained alternatively)
- Power supply: 12V DC / 100mA
- Dimensions: 1.6" x 3.4"
- * NO = Normally Open, NC = Normally Closed
