Proffieboard V3.9 - Open Source Lightsaber Sound Board

https://electronics123.odoo.com/web/image/product.template/12096/image_1920?unique=c250d92
(0 review)

SKU :
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

48.99 48.99 USD 48.99

45.99

Not Available For Sale

  • WeightMajor
  • WeightMinor
  • Color
  • Include 16GB SD Card

This combination does not exist.

Add to cart
Button-Triggered Sound File Upload Solder Pad Connection Built-in Amplifier Additional Memory Capable

Click for Proffie email sign up list

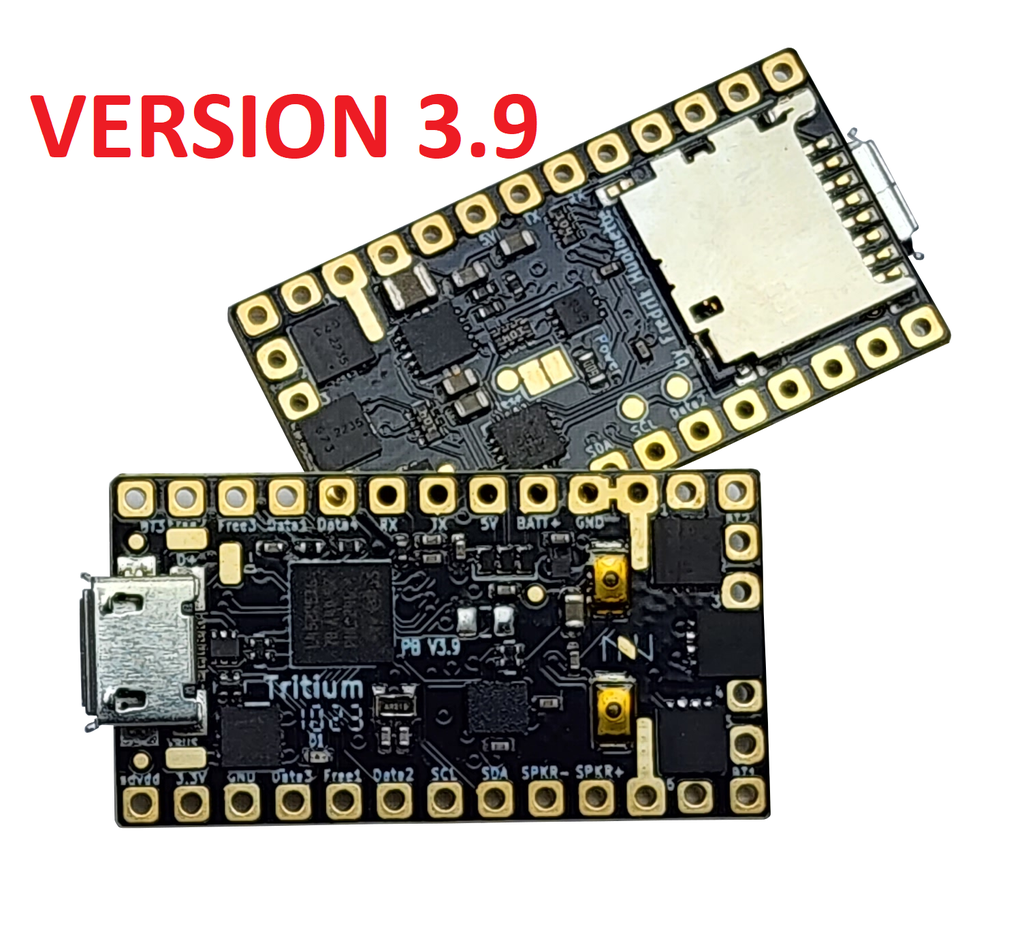

The Proffieboard is a revolution in lightsaber electronics. Fully open source this feature packed board includes smooth swing which provides the most realistic sound effects we have seen in a sound board. The v3.9 ProffieBoard is the latest update in the Proffieboard saga and features a more powerful STM32 microprocessor combined with a motion coprocessor IMU, 3W audio amplifier, and 6 MOSFETs to control external LEDs. It features USB charging, support for deep sleep, additional flash memory (512kb), and much more.

New in V3.9:

  • More FLASH (512kB instead of 256kB): This means more presets, but it also means we can now turn on optimization without running of of memory
  • More RAM (160kB instead of 64kB): No immediate effect, but makes mp3 and echo effects possible
  • More PINS: New CPU is BGA with 64 pins instead of 48. This means more data pins, and and other things, listed below
  • Faster SD card access. The new board uses SDIO instead of SPI to access the SD card. SDIO is significantly faster than SPI. In initial testing I got 20 parallel streams. This means less problems with SD card and more CPU for doing other things.
  • USB charging: The V3 board has onboard charging configured for 450mA charge speed.
  • An onboard status LED helps show what the board is doing and when something goes wrong.
  • Three new “free” pads. These can either be used to drive 20mA LEDs directly, or as neopixel data pads, button pads or servos. The SWDIO, SWDCLK and RESET pads have been moved to the bottom of the board to make room for these new pads.
  • DM/DP/VBUS pads for external USB
  • spot for additional large capacitor if needed (helps when driving BT modules)
  • Two CPU pins are already tied together for Data1, making blade ID work without additional components
  • Power and AUX buttons are wakeup capable, unlocking the possibility of a deep sleep mode
  • Several other pins have been tied together as well, giving each pin more functions. This unlocks additional serial/SPI/I2S/I2C ports and analog pins. There are a LOT new possibilities for interfacing with other boards.

All of this in exactly the same size as a Proffieboard V2.

Specifications:

  • 80Mhz ARM processor
  • 160kb RAM
  • 512kb Flash
  • 3 button pads (capacitive touch capable)
  • 4 neopixel data pads
  • 3 use-for-anything pads
  • 3 serial ports
  • 3 i2c ports
  • 2 SPI ports
  • 6 FETs
  • 6-axis motion chip
  • 3-watt amplifier (mono)
  • S/PDIF or I2S output
  • 450mA USB charging
  • SDIO sd card reader
  • onboard status LED
  • center-board pads for: USB, SWDIO and additional 3.3v capacitor

Pinout
Arduino pin numbers in parenthesis.



Pin function table Note that some of the pads on the proffieboard are hooked up to two pins on the CPU. Those pads have two pin numbers in Arduino, and each pin number can have a different set of function. Care should be taken to not activate two different functions on connected pads, as that can make the CPU chip draw too much power, which can damage it.

PADPin#CPU padGPIOPWMAnalogSerialSPII2CI2SAdditional
Data 1 / ID0PA7resistoredif no pixels
1PA6resistored
Data 22PA9if no pixels TX1
3PB4   MISO1
Data 34PB5if no pixels  MOSI1 SDS/PDIF
5PA10  RX1
Data 46PA4    FSDAC
Free 17PB3  SCK1 SCKServo
Free 28PB10 RX2SCK2SCL4 Servo
Free 39PB11 TX2 SDA4 Servo
10PC2  MISO2
Button 111PB14    SDA2 Touch
12PC5     Wakeup
Button 213PB13    SCL2 Touch
14PA2      Wakeup
Button 315PB15   MOSI2  Touch
RX16PC0 RX3 SCL3
TX17PC1 TX3 SDA3
SDA18PB7     SDA1
SCL19PB8     SCL1
LED120PA1FET
LED221PB1FET     IR
LED322PC7FET
LED423PB6FET
LED524PC6FET
LED625PB0FET
  • BATT+ - 2.6 to 5 volt input, drives everything except the LEDs
  • BATT- - negative pad for LEDs, needs to be at same level as GND when both are connected. Note that there are two of them, which can be useful when driving many powerful LEDs.
  • GND - ground for electronics except LEDs. Note that the two GND pads are interchangable and connected through the board.
  • Button 1/2/3 - Hook up to closing buttons, or potentially touch buttons.
  • Data 1 / ID - Normally used to measure the blade ID restor, and if it's a neopixel blade, feed out neopixel data. For a fixed non-neopixel saber, it could be repurposed. Note that this pin has an internal 470 ohm resistor on it, so when hooked up to a neopixel blade, it does not need any resistors.
  • Data 2-4 - additional neopixel data outputs, or free for other purposes.
  • Free 1-3 - Can be used as buttons, additional neopixel outputs, pwm or servos
  • LED 1-6 - Hooks up to negative side of LED (positive side of LED hooks up directly to battery.) These pads can handle up to 30 volts.
  • SD Power - FET-controlled 3.3v. can be used to power down bluetooth and displays in low-power mode.
  • SDA, SCL - i2c bus, used internall to talk to the motion sensing chip.
  • 5v - generated by the proffieboard, normally it's only on when sound is playing.
  • 3.3v - generated by the proffieboard.
  • GPIO - (general purpose in-out) all gpio pins can be used as neopixel ouputs, button inputs, IR reading inputs and many other purposes.
  • PWM - (pulse-width modutlation) pwm-capable pads can be used to drive LEDs and servoes. The PWM can control the brightness of the LED or the angle of the servo.
  • Analog - analog-capable pins can use analogRead() to read voltages between 0 and 3.3v volts. (Voltages outside this range may damage the board.)
  • Serial - simple serial ports for talking to other chips.
  • i2c, SPI - buses for talking to other chips.
  • S/PDIF, I2S - audio output options
  • Wakeup - deep-sleep wakeup capable pins
  • DAC - digital-to-analog capable pins
  • IR - ir output pin



Installation

  1. Please test the boards first. Plug it in to a computer and make sure it works and that the SD card can be accessed. Go to the ProffieOS page and make sure you have Arduino and your computer configured correctly for programming the board.
  2. Use the configuration generator to work out the wiring and the configuration. Please note that the configurator can only generate a small fraction of all possible configurations, but if you don't use the configurator you will need to construct your own config file, which can be more difficult.
  3. Solder the board according to the wiring diagram in the configuration generator. Make sure to check all your soldering with a multimeter. Take the SD card out before soldering.



A note on reverse polarity protection
This version of the proffieboard has reverse polarity protection. Please note that there are two major caveats to the reverse polarity protection:

  1. It does not protect whatever is hooked up to LED1-6
  2. It does not work while charging!

Regular LEDs don't have a problem with reverse power, but neopixels can easily fry if the battery is hooked up backwards. Some pixels, like WS2813 have their own reverse polarity protection which is required if you really want your saber to survive unharmed if you plug in the battery backwards.



Wire gauges
Most pads on the proffieboard will not need to carry any significant amount of power and can use 30 awg (very thin) wire if you choose. However, Battery- will carry the combined power of all your LEDs, which is a fair amount of power. It is recommended to use thicker wires, for these wires. There is no absolute rules for what wire guages are required, but here is a helpful chart. (See the "chassis wiring" column.) Keeping the high-power wires short helps as well.

Programming
Most of the time, programming the Proffieboard is as easy as hookin up the USB cable to a computer and pressing the "upload" button in the Arduino IDE. However, an interrupted upload or a crashing program can sometimes stop that from working. If that happens, hold the boot button, then press and release the reset button. This will put the Proffieboard in bootloader mode, and pressing "upload" should now work.

Touch Buttons
Any of the buttons can replaced with a touch button. To wire a touch button, simply hook up the corresponding wire to a metal surface. Note that in spite of the name, you don't actually want anybody to actuall touch the touch buttons. The metal surface needs to be insulated, both from the rest of the hilt, and from the fingers that will be "touching" it. In my case, I used a circuit-board clamp card in a Graflex lightsaber, then I covered it up with tape to insulate it from everything else. More details here.

Choosing Resistors
Calculating resistor values is fairly easy. Just look up how many amps the LED can handle and at what voltage it expects to achive that current. Then the resitor value we want is (BatteryVoltage - LedVoltage) / LedAmps. And the resistor needs to handle (BatteryVoltage - LedVoltage) * LedAmps watts. Example, if the LED wants 1A @ 3.2 volts, the resistor would be (3.7 - 3.2)/1 = 0.5 ohms, (3.7 - 3.2) * 1 = 0.5 watts.

Note that I use 3.7 volts for the battery in these calculations, while li-ion batteries tends to top out at 4.2 volts. Proffieboard can compensate for this by using PWM to reduce the total amount of power and heat generated by the LED when the voltage is higher than what it is rated for. This mode is efficient and seems to work well, but it is possible that it will reduce the life of the LEDs. If you are not comfortable with this, you should use 4.1 or 4.2 volts in the calculations above.

Multi-battery setup
The FETs on the proffieboard can handle voltages up to 30v, so it's possible to do multi-cell setups. However, "Battery+" cannnot handle more than ~4.5 volts. So you would need a separate battery to power the CPU. Another possibility would be to do two batteries in series, but only use one of them to power the CPU. Since the batteries would be discharged unevently, they would have to be charged separately. In the future, I hope to make "Battery+" handle a wider range of voltages, which would make multi-cell configurations a lot simpler.

Using Data 2, Data 4, RX and TX for PWM
Data 2, Data 4 and RX and TX can be used to drive LEDs instead of neopixels or serial ports. However, a single timer is used to drive these pins. For PWM, the timer is usually set to 800Hz, however, when neopixels are used, this timer is set to 800kHz. This basically means that if you use any neopixels, all of these pins become unsuitable for driving LEDs. So, if you select a 6-segment blade + flash string in the configurator above, you cannot use the other data pins to drive nepixels unfortunately.

Troubleshooting
If you're having problems, check out the troubleshooting page.

Dimensions
17.8x33.2x4mm (+3.2mm with micro USB port and micro SD card)

Tritium Sabers manufactures Proffieboards for Electronics123.com, KR Sabers, and many other resellers.

Documentation and Downloads
