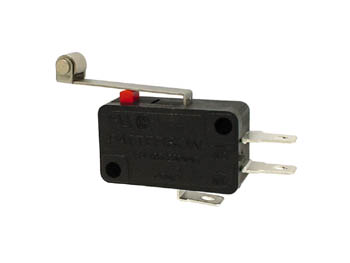

Micro Switch 12A, Long Lever with Roller

    3.95 3.95 3.95 USD

    3.95

    This combination does not exist.

    Add to Cart

    SKU : MS12-R
    Quantity on Hand : 7
    Skill Level : Component or Part
    ROHS Compliant

    Buy 10, Get 5% Off!
    Buy 100, Get 10% Off!


    30-day money-back guarantee
    Free Shipping in the U.S. on Orders over $75
    We offer worldwide shipping as well
    Buy now and choose from several shipping methods

    Terms and Conditions

    Share

    Features:
    • Long lever with roller
    Specifications:
    • Operating force: 60g
    • Contact resistance: initially max. 15mohm
    • Insulation resistance: min. 100Mohm (at 500V DC)d
    • Dielectric strength: 1000V AC for 1 minute
    • Mechanical life: min. 1000000 operations
    • Electrical life: min. 100000 operations (full load)

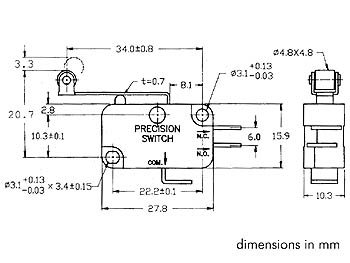

    • Dimensions: 0.63" x 1.09" x 0.41"r
    • Ratings: 12A / 125V AC, 6A / 250V AC
    • Return force: 7g
