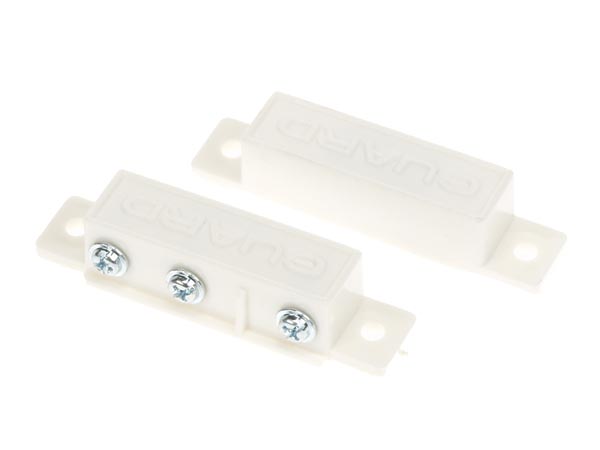

Magnetic contact for windows and doors, against burglars and intruders, NC/NO, ABS housing, white

https://electronics123.odoo.com/web/image/product.template/4050/image_1920?unique=2ac9491
(0 review)

SKU : HAA27
Quantity on Hand : 12
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

HAA27

7.95 7.95 USD 7.95

7.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

This lightweight magnetic contact increases the safety in your home and detects unauthorized access like opening windows or doors from a robust white ABS housing. With a quick response time and stable switching, it immediately signals potential intruders. This device boasts an impressive lifespan of 1,000,000 cycles at 12 VDC. Additionally, it offers installation flexibility, attachable with screws or double-sided adhesive tape. It's equipped with both NO and NC switching options, compatible with many alarm systems. Thanks to its wide temperature range (-20 to 65 °C), it's suitable for various environments. This combination of features makes it a reliable choice for any home.

Specifications:
  • standard type magnetic switch: NO & NC
  • housing: white ABS
  • mounting with screws or double-sided tape
  • contact rating: DC 100V / 0.5A
  • operating gap: 1.2" max.
  • dimensions: 2.5" x 0.5" x 0.5"
  • temperature range: -20 to 65 °C
  • insulation resistance (min.): 1000 Mohm
