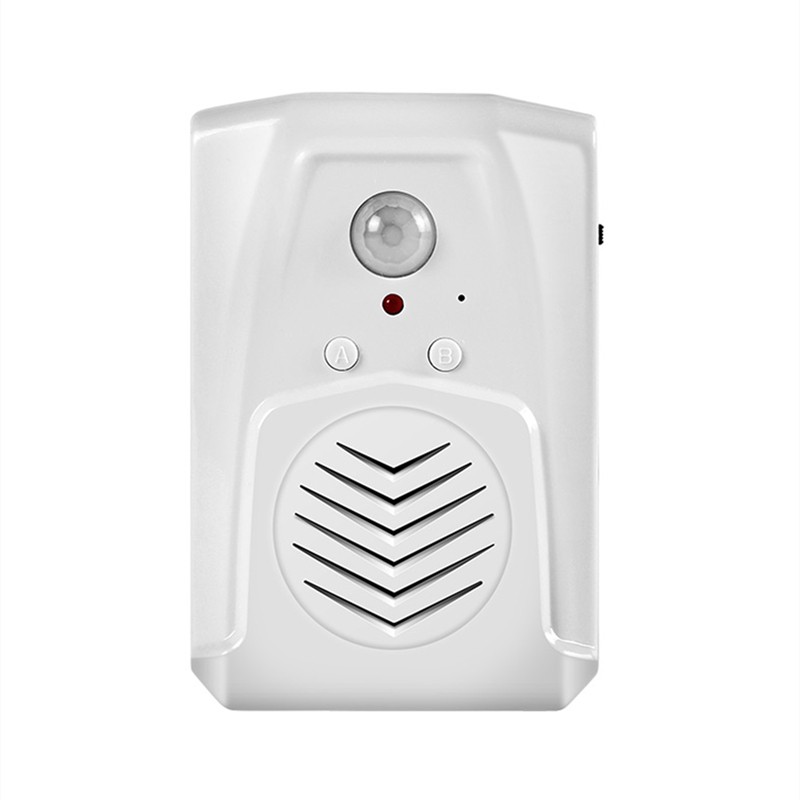

Mini PIR Motion Activated Audio Player

(0 review)

SKU : FNP-703A
Quantity on Hand : 29
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

19.99 19.990000000000002 USD 19.99

19.99

    This combination does not exist.

    Terms and Conditions

    Features:

    • Small and exquisite with MP3 high-quality audio output.
    • Equipped with a PIR motion sensor to trigger audio playback, and detection range can be up to 4 meters.
    • Incorporates 4MB built-in flash memory as the standard internal memory.
    • Uses a micro SD card or 4MB built-in internal flash memory as storage. (choose one or both).
    • Reads audio files directly from the micro SD card (up to 32 GB). (micro SD card sold separately see below)
    • To copy sound files to the built-in flash memory you need a micro SD card. You copy the audio files previously loaded onto a micro SD card to the built-in flash memory. (The micro USB port is only used as an alternative way to power the device - instead of using batteries if desired)
    • Supports two triggering modes:
      Mode 1: You add multiple sound files to the unit. The unit will play the next sound with each activation.
      Mode 2: Play the same sound with each activation.
      (The module is switched between Mode 1 and Mode 2 with a long press (3 seconds) of button A)
    • Supports two power supply methods:
      3 x AAA alkaline batteries (not included) or
      External power adapter through the micro USB port.
    • Two-level sound volume adjustment.
    • For indoor use only.
    • Dimension: 90 x 60 x 26mm
    • Pivoting wall mounting foot included

    Applications

    • Used for promotions or advertising at supermarkets, shops and etc.
    • Can be as a smart bell, door welcome greeter, security alarm, audio reminder, and more!

    Specifications:

    Power Input
    DC3.3-5V Regulated Power Supply
    Working Current
    Standby State  ≤60uA

    Playing State ≤130mA
    Audio Format
    MP3
    Audio Output Power
    8Ω/1W(typical
    Detection Range
    ≤4m(120°angle)
