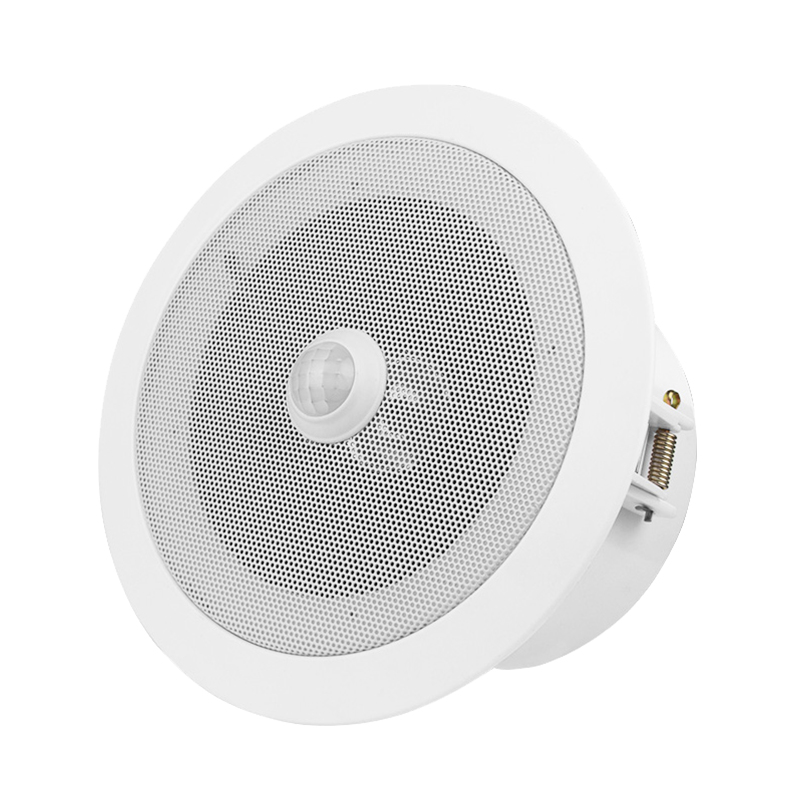

Overhead PIR Motion Sensor Activated Audio Player

https://electronics123.odoo.com/web/image/product.template/10118/image_1920?unique=1f51d19
(0 review)

SKU : FNP-701B
Quantity on Hand : 4
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FNP-701B

69.95 69.95 USD 69.95

69.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Motion-Triggered Sound File Upload All-in-One Kit Built-in Amplifier Additional Memory Capable

        Features:

        • Adopts passive infrared detection technology
        • Detection distance of the PIR motion sensor is up to 5 meters
        • Detection angle of the PIR motion sensor is 120 degrees fan-wise
        • Built-in high quality MP3 player with internal 8Mbytes flash memory
        • Able to copy audio files from the USB stick into the internal flash memory
        • Able to play back audios file directly from an inserted USB stick or a micro SD card
        • Supports max. 32GB micro SD card and USB stick
        • Built-in class D 10Watts amplifier and the sound quality is beautiful
        • Supports three work modes: single loop playback mode, all loop playback mode and random playback mode
        • An AC to DC power adapter comes with the device
        • Two clamps attached with the player and easy to install on the ceiling
        • Technical Parameters
        • Working Voltage: 12-24V DC
        • Working Current: ≥ 1000mA
        • Standby Current: ≤ 10mA
        • Audio Format: MP3 (Bit rate: ≤192Kbps)
        • Audio Output Power: ≤ 10Watts
        • Detection Range: ≤ 5 m (120 ° angle)





          Documentation and Downloads
