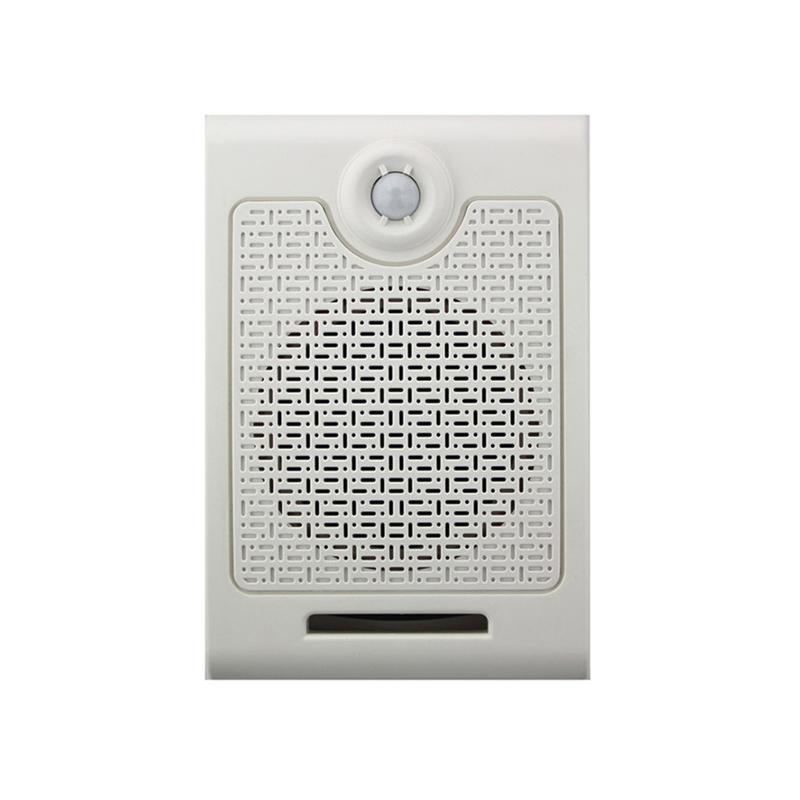

Adopts a durable wall-mounted sound box
Equipped with a high quality audio player.
Equipped with a PIR motion sensor to trigger audio playback, and the detection range is up to 5 meters.
Plays back an audio file from the inserted USB stick or SD card after each activation from the PIR sensor.
Built-in 4MB SPI flash memory, and able to copy audio files from the USB stick onto the internal flash memory.
Working voltage: 12V DC
Working current: ≤ 2000mA
Standby current: ≤ 15mA
Max. audio output power: 20W
Audio format: MP3
Detection range: ≤ 5 m (120 ° angle)
Generally users can directly use a USB stick or SD card. Put audio files on the root directory of the USB stick or SD card
on computer, and once the USB stick or SD card is inserted onto the player, after an activation from the PIR it will play back an audio file from the USB stick or SD card.
