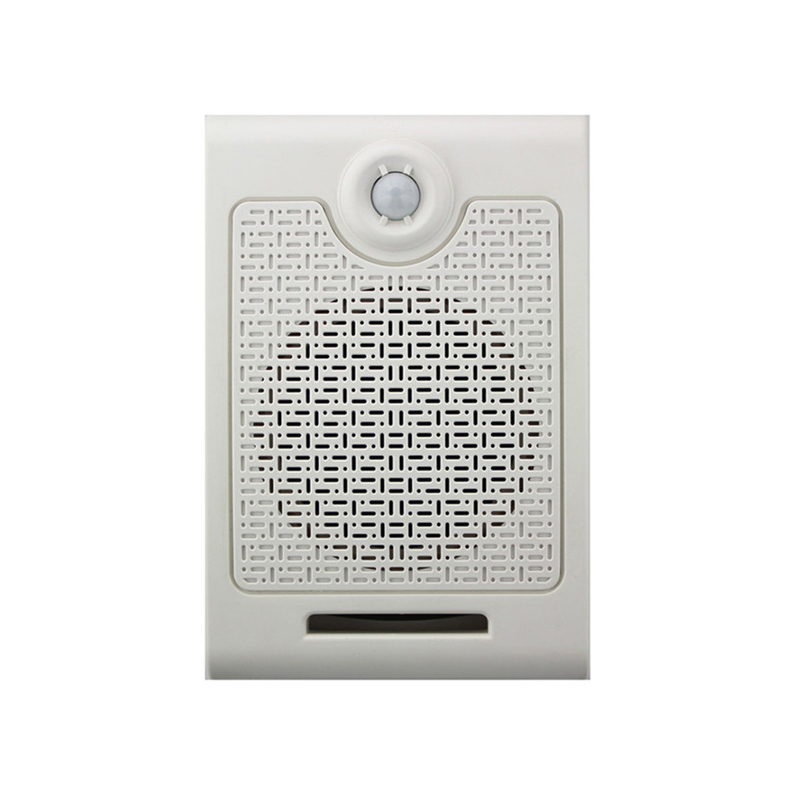

Powerful PIR Motion Sensor Activated Audio Player

(0 review)

SKU : FNP-701A
Quantity on Hand : 4
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


69.95 69.95 USD 69.95


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Motion-Triggered Sound File Upload All-in-One Kit Built-in Amplifier Additional Memory Capable In Enclosure


  • Adopts a durable wall-mounted sound box

  • Equipped with a high quality audio player.

  • Equipped with a PIR motion sensor to trigger audio playback, and the detection range is up to 5 meters.

  • Plays back an audio file from the inserted USB stick or SD card after each activation from the PIR sensor.

  • Built-in 4MB SPI flash memory, and able to copy audio files from the USB stick onto the internal flash memory.
    Technical Parameters

  • Working voltage: 12V DC

  • Working current: ≤ 2000mA

  • Standby current: ≤ 15mA

  • Max. audio output power: 20W

  • Audio format: MP3

  • Detection range: ≤ 5 m (120 ° angle)

Generally users can directly use a USB stick or SD card. Put audio files on the root directory of the USB stick or SD card

on computer, and once the USB stick or SD card is inserted onto the player, after an activation from the PIR it will play back an audio file from the USB stick or SD card.
