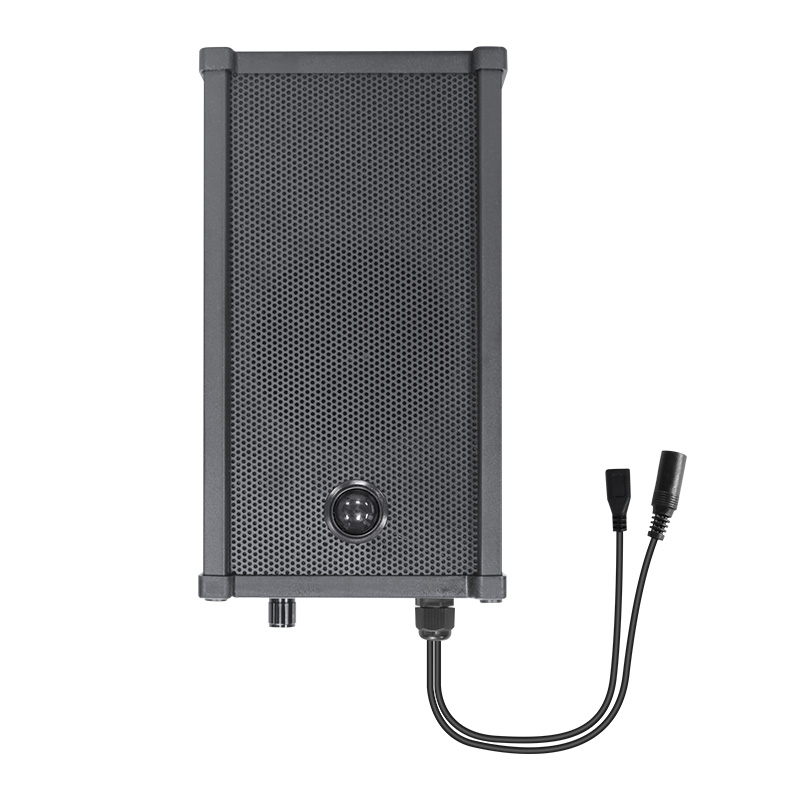

Rainproof PIR Motion Sensor Activated Audio Player (BLACK)

https://electronics123.odoo.com/web/image/product.template/12251/image_1920?unique=383421f
(0 review)

SKU : FNM-803-BLK
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FNM-803

119.00 119.0 USD 119.00

119.00

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Motion-Triggered Sound File Upload All-in-One Kit Built-in Amplifier Additional Memory Capable

ALSO AVAILABLE IN BUTTON TRIGGER VERSION, CLICK HERE

Description:

  • Rainproof and dustproof, suitable for outdoor purposed application scenarios.
  • Adopts passive infrared detection technology.
  • The detection distance of the PIR motion sensor is up to 5 meters.
  • The detection angle of the PIR motion sensor is 120 degrees fan-wise.
  • Built-in, high-quality MP3 player with 4 GB flash memory.
  • Built-in Class D 20 Watts amplifier and the sound quality is great.
  • Load a single MP3 file or multiple MP3 files onto the player on a PC through a USB connection. (USB cable included)
  • Optional to play a sound in order or at random after each activation when multiple files are available.
  • Sound volume is adjustable by turning the potentiometer at the bottom of the device.
  • Powered through a DC9-24V supply. (12VDC 2A power adapter included)
  • Wall mounting hardware included

Features:

  • Working Voltage: 9-24V DC
  • Working Current: ≤ 2000mA
  • Standby Current: ≤ 10mA
  • Audio Format: MP3 (Bit rate: 8-192Kbps)
  • Audio Output Power: ≤ 20Watts
  • Detection Range: ≤ 5 m (120 ° angle)
  • Protection Grade: IPX6

    Documentation and Downloads
