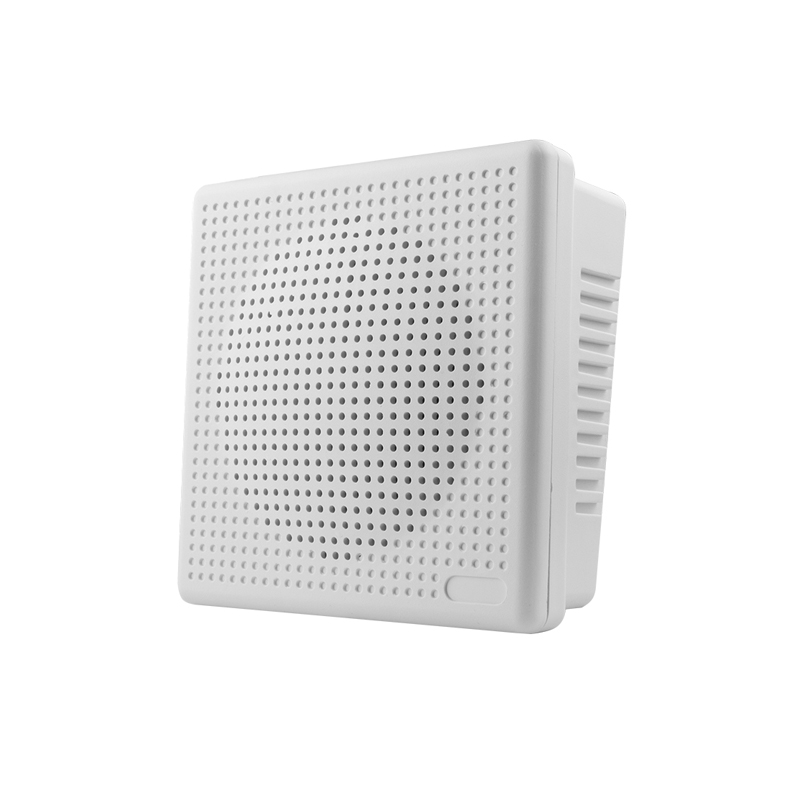

Triggerable 10 Watts MP3 Audio Player/Wall Speaker V2.0 (4 Buttons)

https://electronics123.odoo.com/web/image/product.template/9948/image_1920?unique=18da4c3
(0 review)

SKU : FN-W101
Quantity on Hand : 30
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FN-W101

39.99 39.99 USD 39.99

39.99

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

ADD TO CART

Features:

  • Equipped with a high-quality audio decoder chip that is able to decode MP3 and WAV audio formats.
  • Built-in a 4MB flash memory by default, which is able to store a total of 4 minutes long MP3 files of 128Kbps.
  • Supports max. 32GB micro SD card.
  • Load audio files to the internal flash memory/SD card through the micro USB port based on PC like using a USB flash drive.
  • 4 trigger inputs available and triggered by negative pulse/GND(low-level signal).
  • 12 different functions and trigger modes for each input can be set individually through a configuration file.
  • Can be controlled by buttons, switches, or relays.
  • Built-in a 10Watts class D amplifier and a 5Watts speaker for great sound output.
  • Adjustable sound volume through the small blue potentiometer.
  • 3.5mm Audio Jack. (When this audio jack is used, the built-in speaker is disconnected, and adjustable sound volume is disconnected as well)
  • Wide power input (DC9-24V) and stable performance.
  • Dimensions: 120 x 120 x 60mm

Electrical Parameters:

  • Working voltage: DC 9V-24V
  • Working current: ≤400mA (Input: DC12V)
  • Power Consumption: ≤5W
  • Flash memory size: 4MB
  • Audio format: MP3/WAV

Reference for Normal Use:

Odoo • A picture with a caption


Reference for Automatic loop Playback when Powered Up

Odoo • A picture with a caption
 This wiring method is for the player to play the sound messages automatically in a loop once it’s powered up. Also for this trigger mode, the configuration file must be “4”.
