Motion Sensor MP3 Player Module with Load Output and PIR

https://electronics123.odoo.com/web/image/product.template/12163/image_1920?unique=81a1e2a
(0 review)

SKU : FN-TG01-PIR
Skill Level : Kit - No Soldering Required

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FN-TG01-PIR

29.95 29.95 USD 29.95

29.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Motion-Triggered Sound File Upload Terminal Block Connection Built-in Amplifier Headphone Audio Output Additional Memory Capable Best Seller

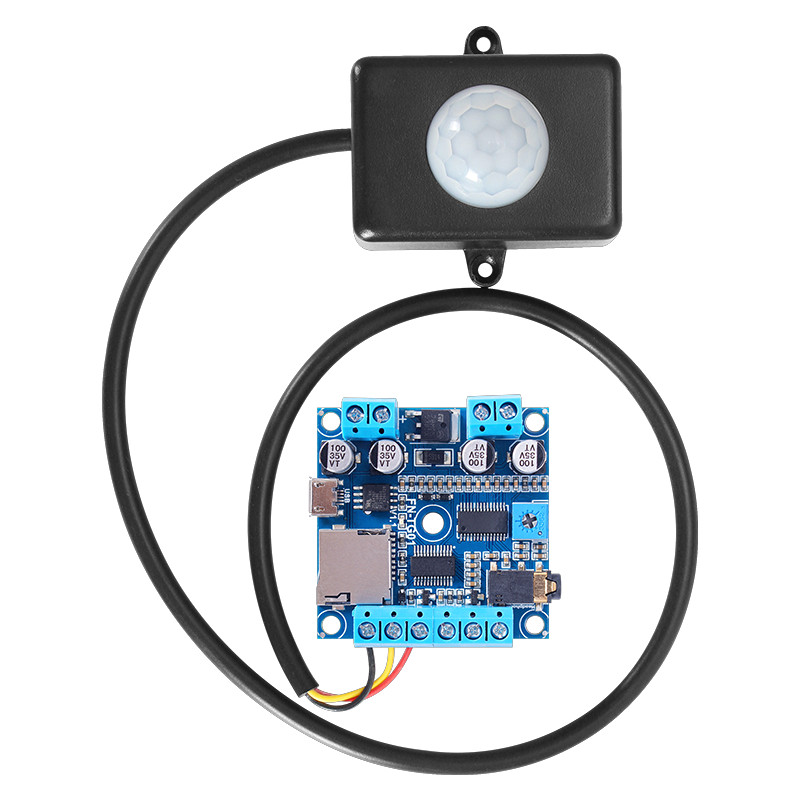

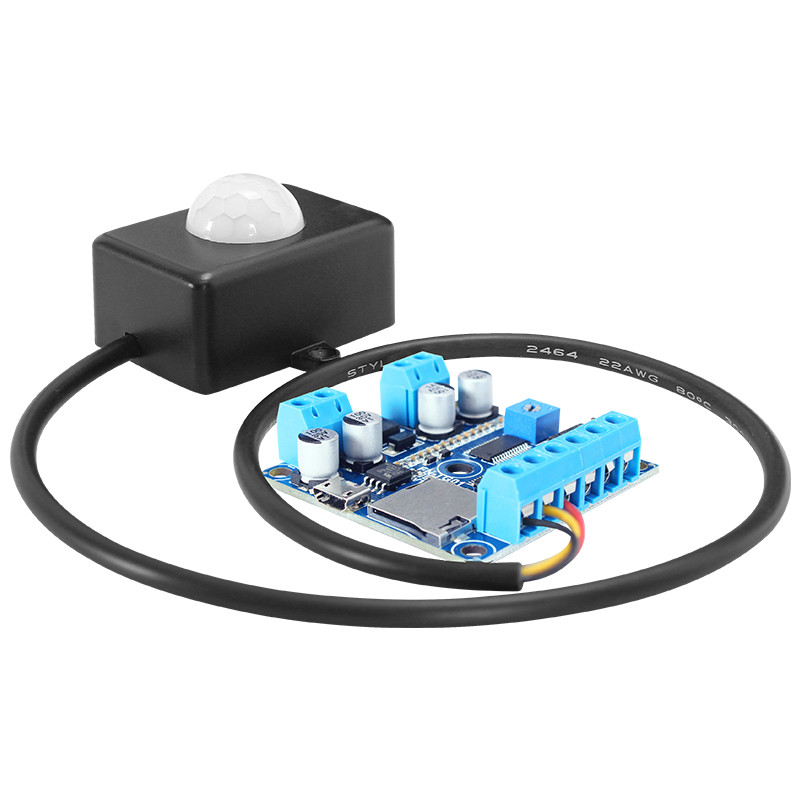

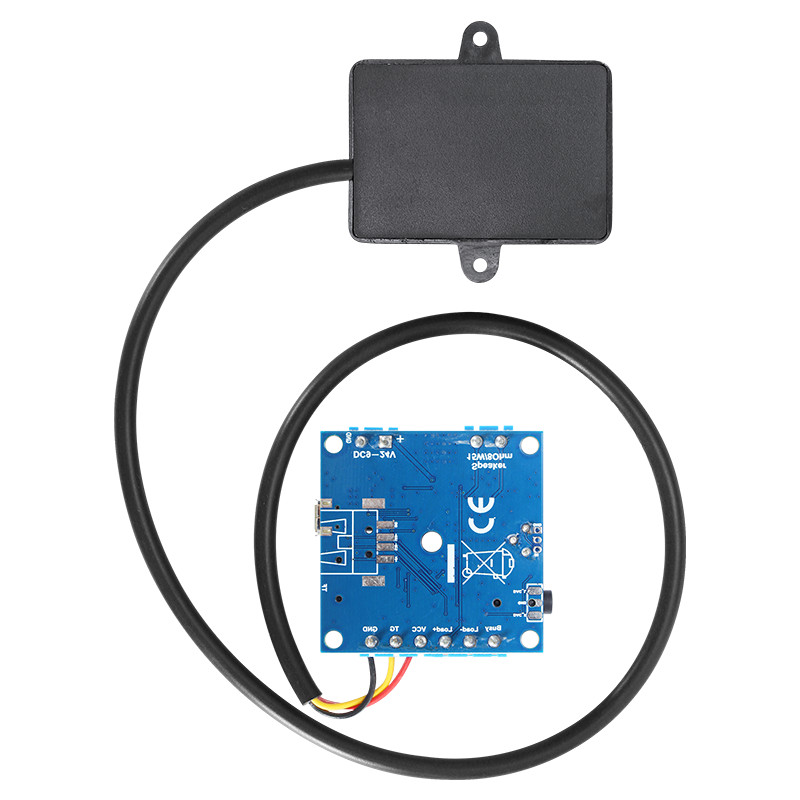

NOTE: The Board and PIR comes unconnected to each other. Please attach the PIR wires into the board's terminal blocks as shown in the pictures.

Features:

  • Equipped with a high-quality audio decoder chip.
  • Supports MP3 and WAV audio files.
  • Built-in 8MB flash memory, which is able to store a total of about 8 minutes long MP3 files of 128Kbps.
  • Equipped with a micro SD card holder, and supports max. 32GB micro SD card.
  • Solder pads for connection with external USB flash drive available on the back of the board.
  • Update audio files easily through the micro USB port connected with PC like using a USB drive.
  • Built-in a class D 15Watts amplifier IC that is possible to drive a 10Watts 8ohms or 15Watts 8ohms speaker.
  • Solder pads for audio signal out to external amplifier available on the back of the board.
  • Adjustable sound volume through the blue potentiometer.
  • Can be activated with a PIR sensor, microwave sensor, switch or relay.
  • Supports multiple files that can be played back sequentially OR in random order
  • When a sound is playing, there is simultaneously a load output (Up to 200mA max), which can directly drive a warning light, LED light or LED strip.

Technical Parameters:

  • Working Voltage: 9-24V DC
  • Working Current: ≤2000mA
  • Consumption Current at Playback: ≤500mA (12V DC)
  • Standby Current: ≤15mA
  • Flash memory size: 8Mbytes
  • Audio format: MP3 or WAV
  • PCB size: 45mm x 45mm

  • Trigger Functions

    • If there are multiple files in the internal memory, after each activation, the player will play an audio file at a time in sequence (from the first file to the last one in the loop)  This is the default setting for all boards
    • If you want the player to play an audio file randomly each time among all the files, you need to create a simple configuration file and put it together with the audio files in the root directory of the memory with a "2" in the config file.  That will play the sounds on the board in random order.
    • If you would like to have the board loop a sound you must edit the config file to have a "3" after that when you hold the button down ( Ground out the GND and TG terminals ) and apply power after, it will loop the sounds on the board ( It will loop the sounds in the order as they are on the board [ie 001, 002,  Etc..] )


    PIR Features:

    • Operating voltage DC 5-24V
    • Current consumption ≤10mA (DC 12V)
    • Standby current ≤60uA
    • Level output 0V (3.3V at standby)
    • Delay time 3S
    • Detecting distance ≤6m
    • Detecting angle 120
    • Diameter of the Lens 23mm

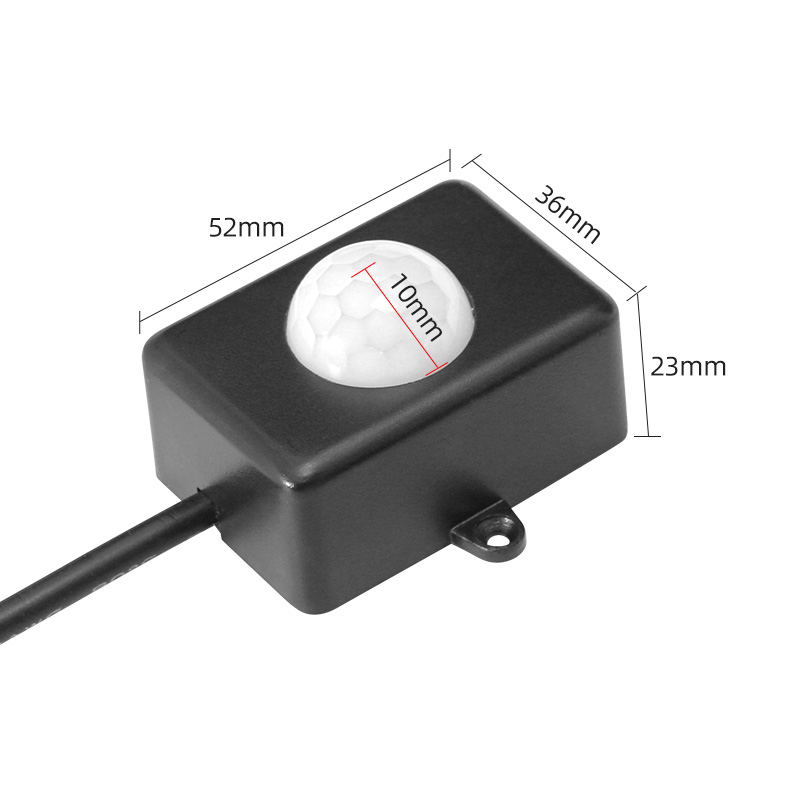

    • Outline size 52L*36W*23H mm
    • Diameter of the mounting hole 2.5 mm
    • Length of the cable 45cm
    • Operating temperature -20C to +50C
    • Wiring:
      Red wire: +12V
      Black wire: GND
      Yellow wire: Signal
