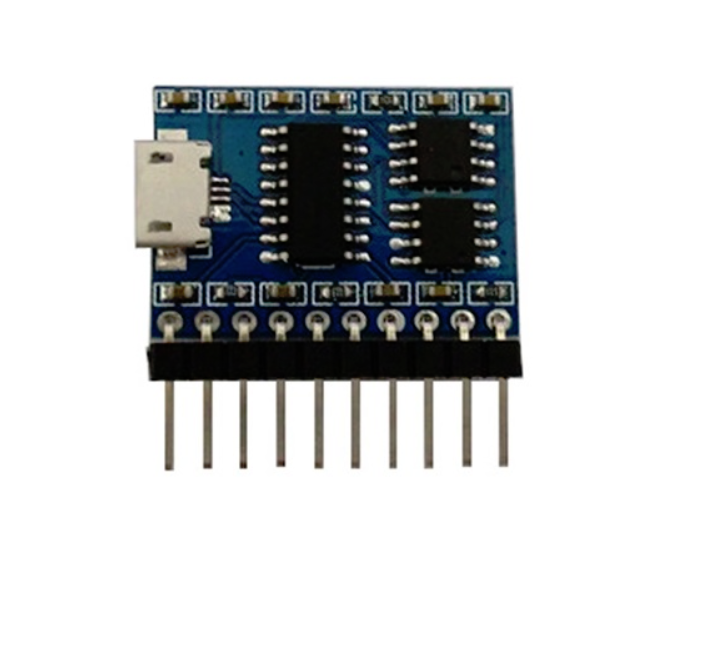

Tiny Embedded MP3 Audio Module Flash Memory Based

  • WeightMajor
  • WeightMinor

7.95 7.95 7.95 USD

7.95

This combination does not exist.

Add to Cart

SKU : FN-S10P
Quantity on Hand : 29
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions



Share

Brief Introduction:

FN-S10P is a simplified serial MP3 module that uses a high-quality MP3 and WMV decoder chip FN6100-16S. It is able to play back specified audio files and realizes other functions through simple UART serial commands provided. It uses an SPI flash memory as the storage unit, and users can update audio files easily by directly connecting them with a PC as simple as using a USB flash drive. Without the cumbersome underlying operating, easy to use, stable and reliable are the most important features of this module.

NOTE: 10 pin header pin is supplied, but it is not soldered to board.



Features:

  • Supports MP3 and WAV decoding.

  • Works with most Windows, Mac, and Linux systems

  • Supports sampling rate (kHz): 8/11.025/12/16/22.05/24/32/44.1/48

  • 24-bit DAC output and supports dynamic range 90dB and SNR 85dB.

  • Built-in a 4MBytes(32Mbits) SPI flash memory.

  • Update audio files via the micro USB port by connecting with the PC. Easy to operate and no need for any software.

  • Supports combination playback(group playback) that can realize telling time, temperature and etc.

  • Supports advertising spots during playback of a track.

  • Supports random playback and repeat/loop playback.

  • 30 levels adjustable volume.

  • Directly drive a 3W speaker and also possible to connect with an external headphone or amplifier.

  • PCB size: 25.80mmx18.00mm

Pin Configuration
