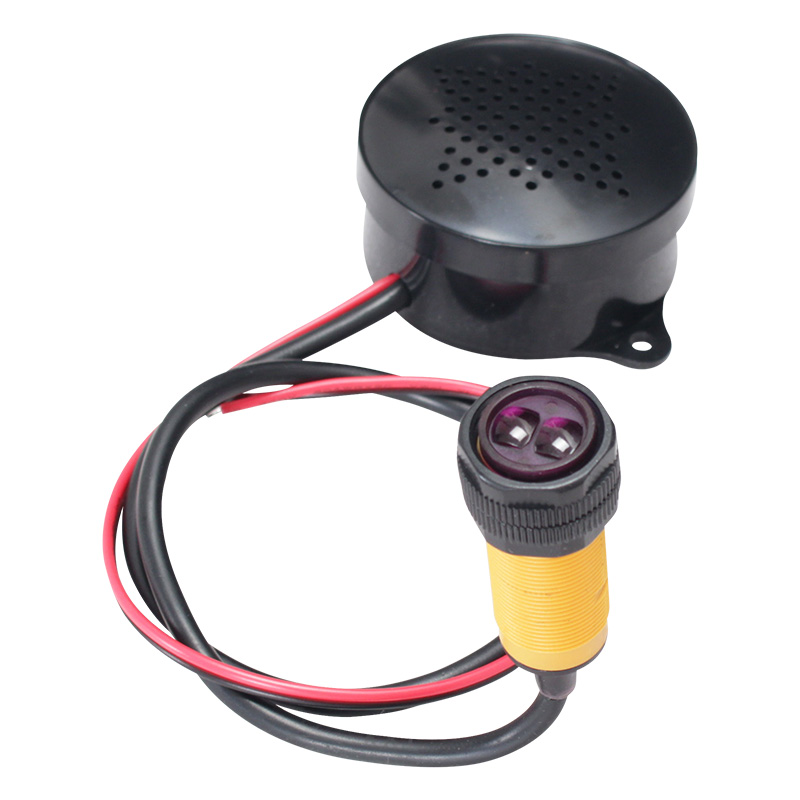

Recordable Audio Speaker MP3 Sound Player Activated with Photoelectric Sensor

(0 review)

SKU : FN-H865B
Quantity on Hand : 5
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FN-H865B

28.95 28.95 USD 28.95

28.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Features

  • It adopts a photoelectric sensor to trigger playback of the sound.
  • Detecting distance is adjustable between 5 cm to 75 cm (2" to 30").
  • Built-in high quality MP3 player with great sound quality.
  • Built-in 4MB flash memory as the storage device.
  • Update sound files easily on computer through USB connection.
  • No need any software. It will be detected as a USB flash drive on computer.
  • Supports three trigger modes and each mode can be set easily with a config file.
  • Equipped with a high-quality class D amplifier.

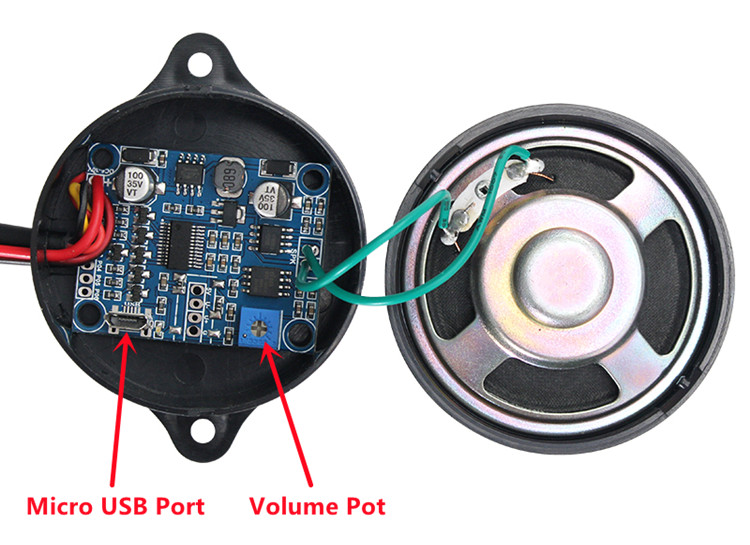

  • Sound volume is adjustable through the blue pot on the internal circuit board.
  • Small body but loud volume.

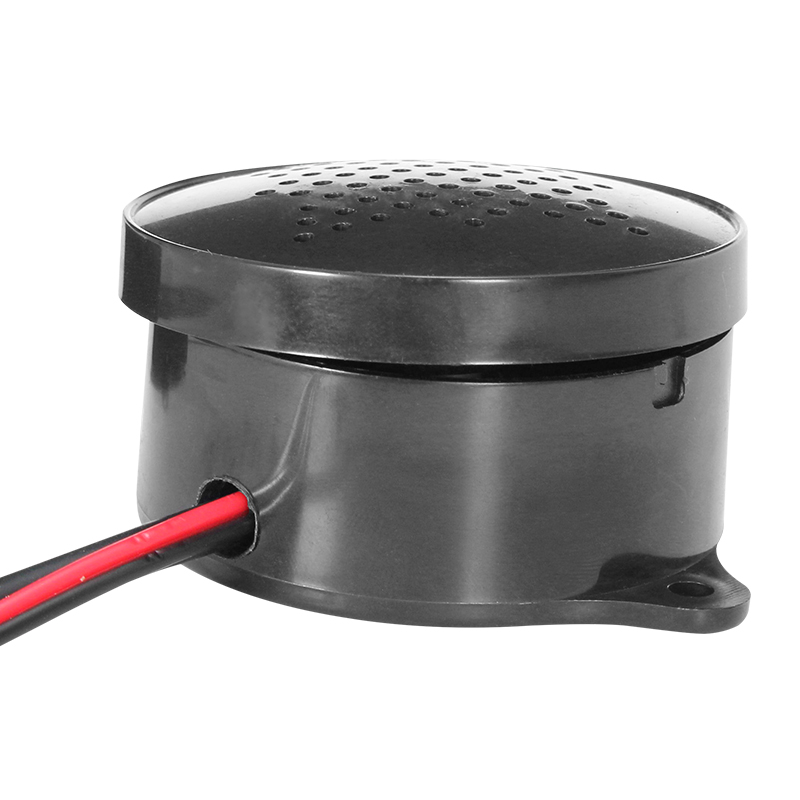

  • Two mounting holes available on the speaker. Also fine to fix it using a double-sided adhesive.

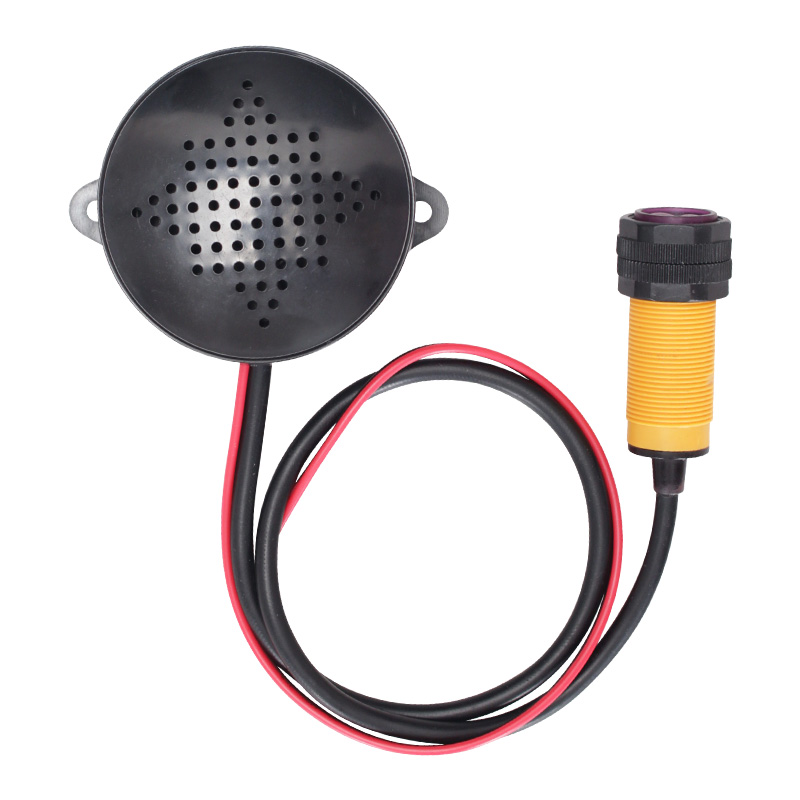

  • Length of the cable between the photoelectric sensor and the speaker: 38cm
  • Length of the power wires: 28cm
  • Suitable for museum displays, exhibition stands, animatronics, etc.

Technical Parameters

  • Working voltage: 6V-36V DC
  • Working current: ≤1000mA
  • Power consumption: ≤3W
  • Flash memory size: 4MB
  • Audio format: MP3 (≤192Kbps)
  • Sound pressure level: ≤100dB

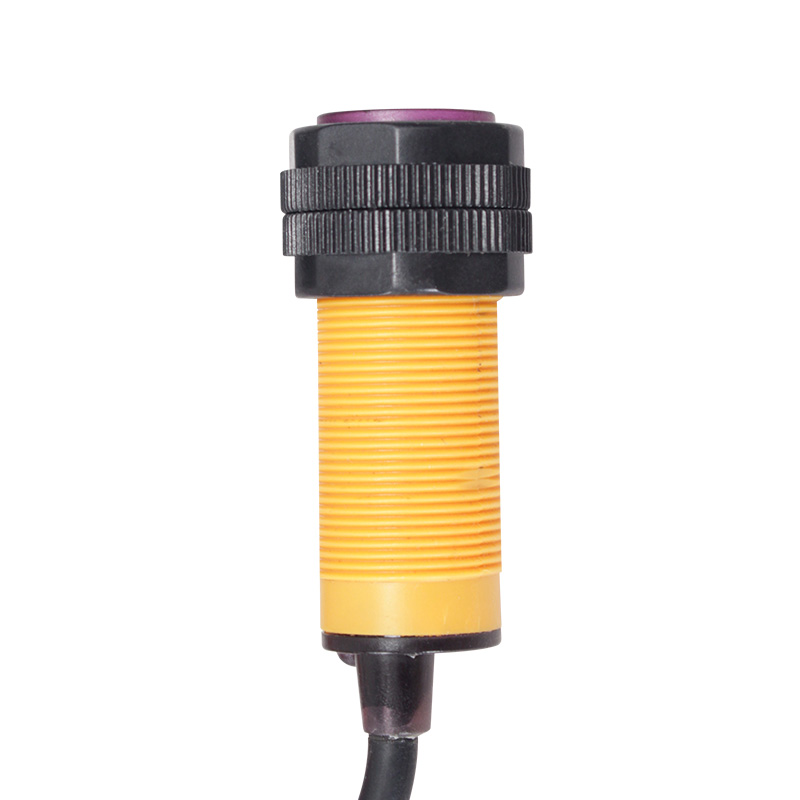

  • Pointing angle of the sensor: 3-5 degree
  • Response time of the sensor: 2ms
  • Detecting distance of the sensor: 5-75 cm (2" to 30")
