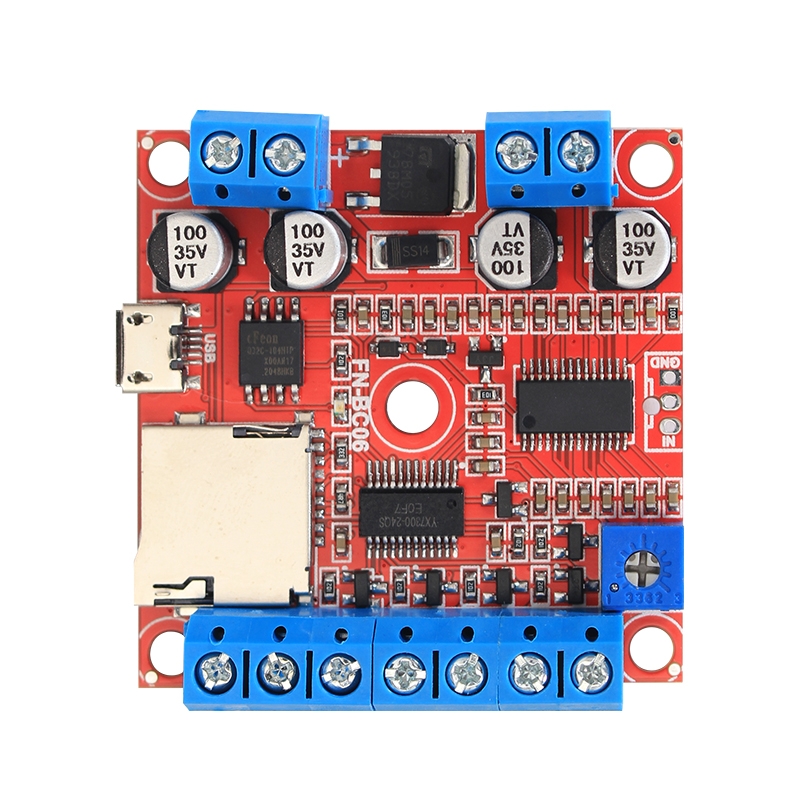

6 Buttons MP3 Player Sound Board with 15W Amplifier and Terminal Blocks

https://electronics123.odoo.com/web/image/product.template/11913/image_1920?unique=225a3a2
(0 review)

SKU : FN-BC06-TB
Quantity on Hand : 19
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FN-BC06-TB

25.95 25.95 USD 25.95

25.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Button-Triggered Sound File Upload Terminal Block Connection Built-in Amplifier Additional Memory Capable


Also available with solder pads. Click Here

 Features

  • 6 trigger input ports available and triggered by negative pulse or GND.
  • The function/trigger mode of each input port can be set individually through a config file.
  • Support 7 main trigger modes and 5 assistant trigger modes.
  • Equipped with a high quality audio decoder that is able to decode MP3 and WAV audio formats.
  • Built-in a 4MB flash memory by default, and supports max. 32GB micro SD card.
  • Able to update audio files through the micro USB port based on PC like using a USB flash drive.
  • Supports multiple sound files per button
  • Built-in a mono 15 watts class D amplifier and possible to solder a 3.5mm audio output jack on the back of the module.

Technical Parameters

  • Working voltage: 9-24V DC
  • Working current: ≤2000mA
  • Standby current: ≤10mA
  • Power Consumption: ≤15W
  • Audio format: MP3 / WAV
