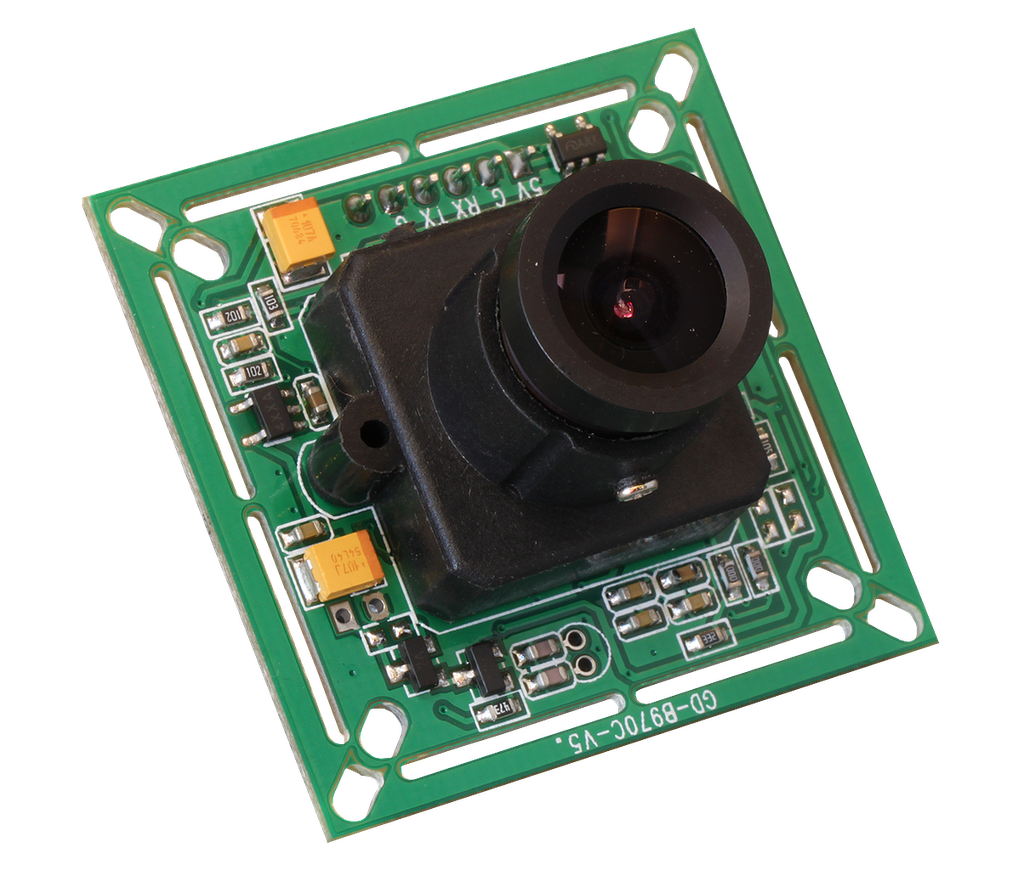

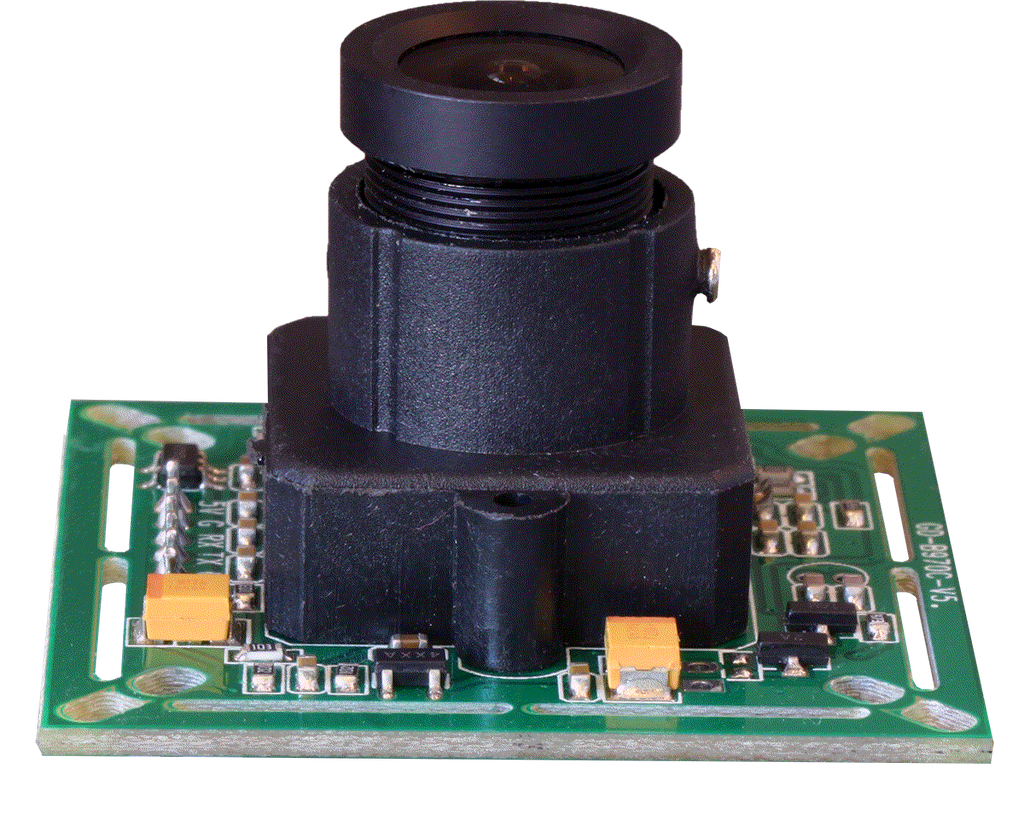

C429-L28 JPEG Compression VGA Camera Module WITH IR-CUT filter mounted on sensor & 2.8mm lens

(0 review)

SKU : C429-L28
Quantity on Hand : 118
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

C429-L28 B970C-L28

9.00 9.0 USD 9.00


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

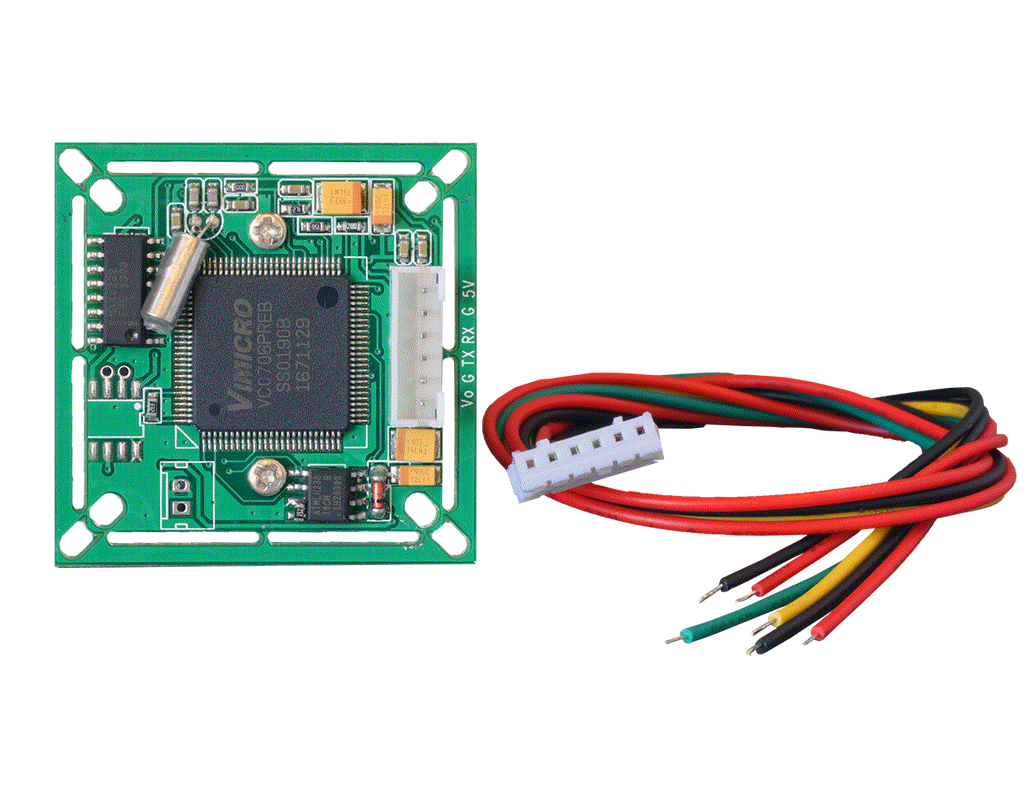

          Description: The C429 JPEG compression module performs as a video camera or a JPEG compressed still camera. Users can send a snapshot command from the host in order to capture a full resolution, single-frame still picture (MT9v011+VC706sensor). The picture is then compressed by the JPEG engine (VC0706) and transferred to the host. A schematic to build your own EV kit and software for the camera is also included. (This is another replacement for the C328 cameras even though the command-set is not identical to that used in them.)INCLUDES built-in IR-CUT FILTER mounted on sensor, 3.6mm LENS, & 6 pin cable w/connector.

          • Small size 32 x 32mm
          • Adjustable resolution, Max VGA
          • 5V operation
          • Low Power consumption 80mA
          • UART interface up to 921.6Kbps
          • Built-in IR-CUT filter - for day & night (The filters have a lightpass at about 850nm and are designed to work with IR LEDs emitting at 850nm.)
          • Multiple lens options available
          • Includes 2.8mm lens (L28) specs:
            • Focal length: 2.8mm
            • Aperture (D/f'): 1/2.0
            • Horizontal field: 95 degrees
            • M.O.D. (m): 0.2
            • Format: 1/3"
            • Mount: M12 x 0.5
            • Dim (D x L mm): φ14 x 16.8
            • Weight: 4.0g

          Key Features:

          • CMOS sensor or CCIR656 video input
          • CCIRT656 digital video output
          • Supports UART interface to connect various host controller easily
          • Supports VGA M-JPEG video output with the frame rates up to 30 fps
          • Embedded OSD image overlay
          • Video optimization under low light environment
          • Smart noise forecast and reduction
          • Motion detection and alarm trig
          • NTSC output
          • Various image processing modes
