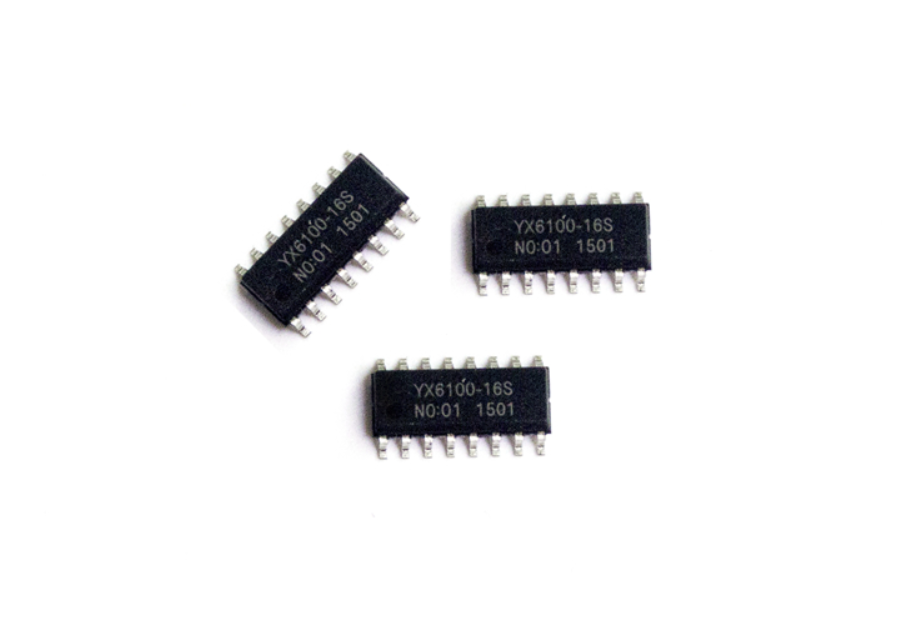

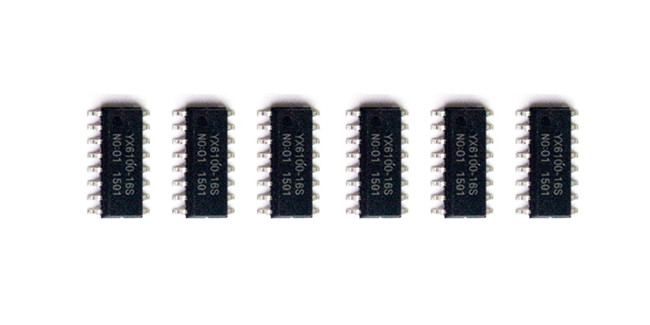

YX6100-16S MP3 WMV Decoder Chip

    1.31 1.31 1.31 USD


    This combination does not exist.

    Add to Cart

    SKU : YX6116S
    Quantity on Hand : 0
    Skill Level : Component or Part

    Buy 10, Get 5% Off!
    Buy 100, Get 10% Off!

    30-day money-back guarantee
    Free Shipping in the U.S. on Orders over $75
    We offer worldwide shipping as well
    Buy now and choose from several shipping methods

    Terms and Conditions


    Description: YX6100-16S is a high quality MP3 and WMV decoder chip supporting UART serial port. It is able to play back specified audio files and realize other functions through simple UART serial commands provided. It uses a SPI flash memory as the storage unit, and users can update audio files easily through directly connecting it with PC as simple as using a USB flash drive. Without the cumbersome underlying operating, easy to use, stable and reliable are the most important features of this module.


    • Supports MP3 and WAV decoding.

    • Supports sampling rate (KHZ): 8/11.025/12/16/22.05/24/32/44.1/48

    • 24-bit DAC output and supports dynamic range 90dB and SNR 85dB.

    • Supports max. 16MBytes(128Mbits) SPI flash memory.

    • Update audio files via the micro USB port through connecting with PC. Easy to operate and no need any software.

    • Supports combination playback (group playback) that can realize telling time, temperature and etc.

    • Supports advertising spots during playback of a track.

    • Supports random playback and repeat/loop playback.

    • 30 levels adjustable volume.

      NOTE: We can only supply the chips packaged in tubes for quantities less than 2000 pieces.
