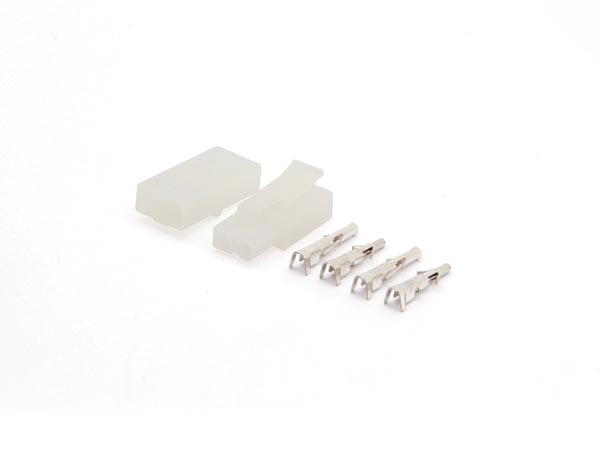

Wire to Wire Connector Set 6.2 mm / 0.24" 1 x 2 Poles

https://electronics123.odoo.com/web/image/product.template/5475/image_1920?unique=0544e0e
(0 review)

SKU : WTWCS1X2
Quantity on Hand : 39
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WTWCS1X2

1.55 1.55 USD 1.55

1.55

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Features:
  • for cables of 0.5 to 2.1 mm² / 14 to 20 AWG
  • ratings: 50 V / 10 A
  • can be crimped with: VTNCT

Specifications:

  • number of contacts: 1 x 2 poles
  • contact resistance: 10 mohm max.
  • insulator resistance: 1000 Mohm min.
  • dielectric strength: 1500 VAC for 1 minute
  • current rating: 8-13 A
  • voltage rating: 300 VAC
  • pitch: 6.2 mm / 0.24"
  • material:
    • housing: Nylon UL 94V-0
    • contact: phosphor bronze (tin-plated)
