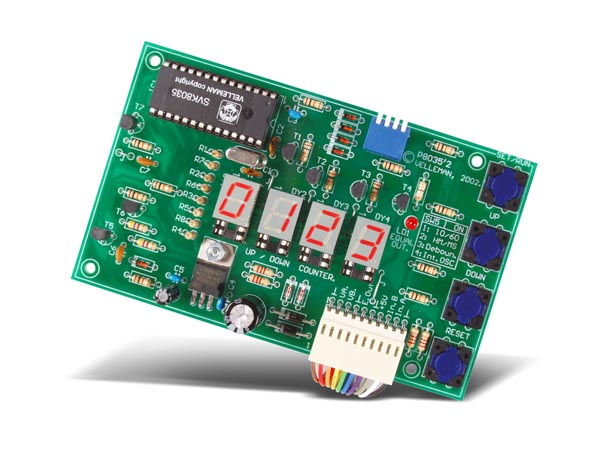

Multifunctional Up/Down Counter

https://electronics123.odoo.com/web/image/product.template/4577/image_1920?unique=71c9ef5
(0 review)

SKU : WST8035
Quantity on Hand : 3
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WST8035

27.95 27.95 USD 27.95

27.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Share

Features:

  • Comes in handy for people counting, part counting, score keeping, ...

  • Counts up or down

  • Count input through on-board pushbuttons or by external pulses

  • Display modes: normal or time (hh:mm and mm:ss)

  • An internal oscillator allows time measurement

  • Programmable pre-set value with equal output

  • Self diagnostic at power up

  • Comes with easy board-to-wire connector (20cm wire)

  • Optional bezel enclosure: B8035

Specifications:

  • Counter input voltage: 3...12V DC (normal dry contact also possible)

  • EQUAL output: 5V DC / max. 50mA

  • Max. counting speed: 200 / sec. (2 / sec. with long debounce delay)

  • Max. count: 4 digits (9999 / 23h59m / 59m59s)

  • Power supply: 9 - 12V DC or transformer 2 x 9V AC / 300mA

  • Power consumption: 150mA max.

  • Dimensions: 4.9" x 3.0"/ 125 x 75mm

Documentation and Downloads
