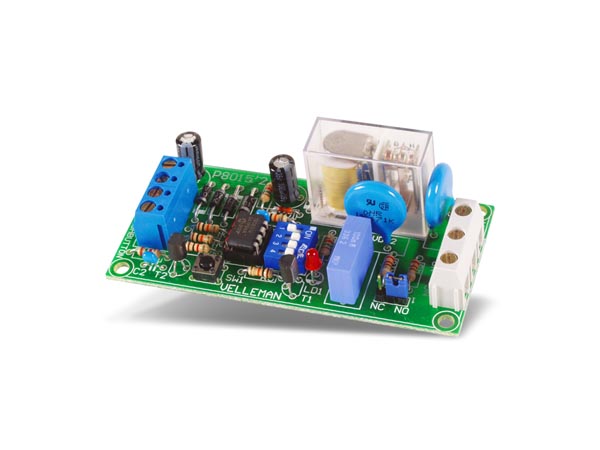

Multi-function Timer Relay Switch (Kit)

(0 review)

SKU : WST8015
Quantity on Hand : 5
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WST8015

$ 21.95 21.95 USD $ 21.95

$ 21.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Share

Features:

  • 14 different functions including timers, switching, flashing, interval, and random switching

  • Two pre-programmed delays

  • Learning mode for delays of 2s up to 12 days

  • Push-button control

  • EEPROM for delay time storage in case of power failure

  • On-board transient filter for the relay contacts

  • Suitable for control of incandescent lighting, halogen lighting, fluorescent lighting, fans, valves, buzzers, etc.

Specifications:

  • Operating voltages: 9-12V AC or 12V DC

  • max. load: 5A (1100W/230V)

  • Dimensions pcb: 3.4" x 1.5" x 1.0"

Documentation and Downloads

Alternative Products:

[WST8015-TBA] Multi-function Timer Relay Switch (Assembled)
Multi-function Timer Relay Switch (Assembled)
