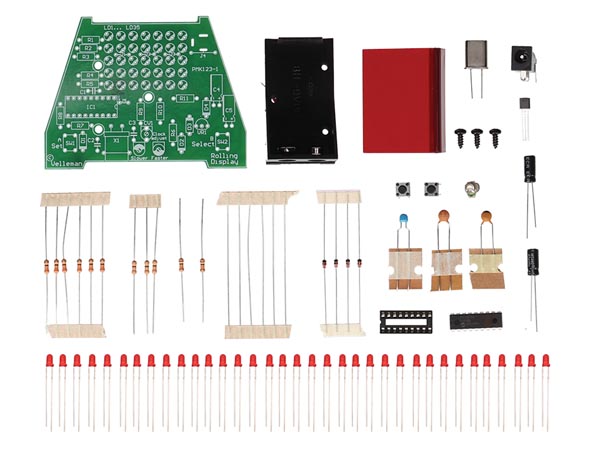

Rolling Clock (Kit)

https://electronics123.odoo.com/web/image/product.template/4934/image_1920?unique=7449106
(0 review)

SKU : WST123
Quantity on Hand : 3
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WST123

14.95 14.950000000000001 USD 14.95

14.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

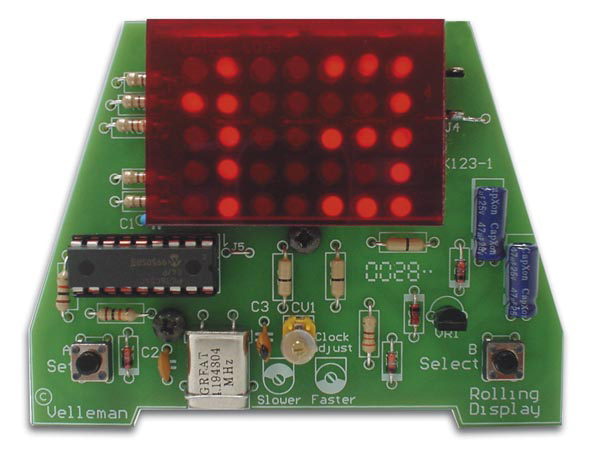

Retro animated rolling time and date display with 35 LEDs. Change the hours, minutes, month or day by using the Select button, then confirm the values by using the Set button. The time is displayed in 12h-mode (24h-mode when setting clock). Fine-tune the clock with CV1.

Specifications

  • power supply: 9-12Vdc adapter or car battery
  • current consumption: 20mA max.
  • backup battery: 9V block type 6LR61 / 6F22
  • dimensions: 46/89 x 67mm (1.8/3.5 x 2.6")

Features:

  • Graphic display with 35 LEDs.

  • Select hours, minutes, month or day with SELECT and enter the values with SET.

  • Time display in 12h-mode (24h-mode when setting clock).

  • Fine-tune the clock by turning CV1.
