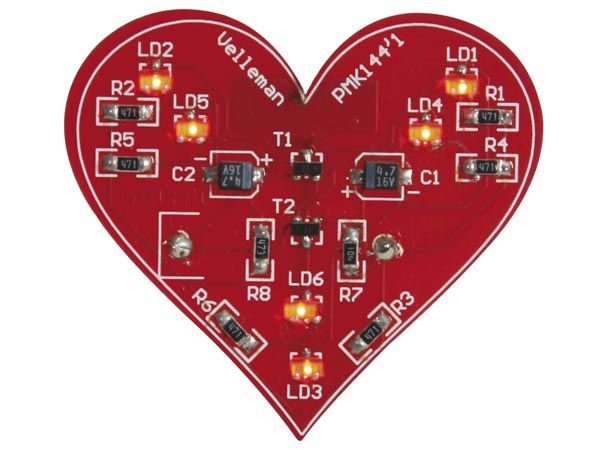

SMD Flashing Heart (Kit)

(0 review)

Quantity on Hand : 3
Skill Level : Kit - Complex Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

10.95 10.950000000000001 USD 10.95


  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions


  • Miniature size gadget

  • 6 LEDs flash alternately

  • Can be operated pending (e.g. around the neck) or can be worn as a badge (pin supplied)

  • Great attention grabber

  • Ideal introduction to SMD (Surface Mounted Device) technology

  • Some extra parts are supplied, in case some get lost or damaged


  • Power supply: 3V Li button cell (e.g. CR2025 or CR2032) (not included)

  • Power consumption: 5mA approx.

  • Dimensions: 1.9 x 1.7 x 0.3"


  • Hint: use tweezers, a soldering iron with a fine tip (25W max.) and thin 0.6mm solder

Documentation and Downloads
