10-Channel, 2-Wire Remote Control (Kit)

https://electronics123.odoo.com/web/image/product.template/4568/image_1920?unique=dda2498
(0 review)

SKU : WSRC8023
Quantity on Hand : 6
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WSRC8023

27.95 27.95 USD 27.95

27.95

Not Available For Sale

This combination does not exist.

Add to cart

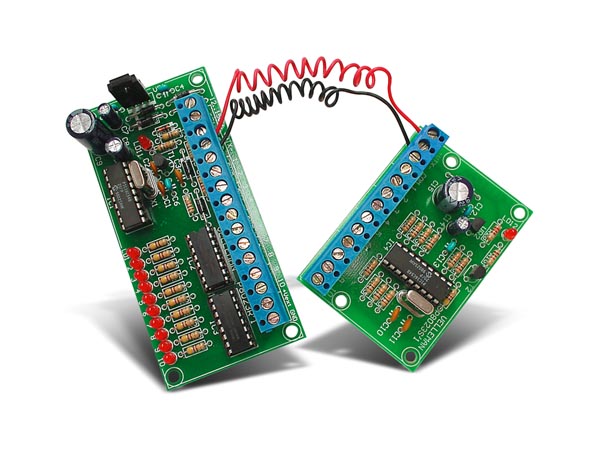

This kit allows you to control up to 10 devices using only 2 wires at a long distance. Microprocessor controlled. Inputs can be push-buttons, switches or open collector outputs from another device. The receiver section provides 10 open collector outputs that allow you to control relays directly. Terminal block connectors for all input and output connections are included. All outputs are provided with LED indication. Specifications:

10 open collector outputs: 50V / 100mA
tested to a distance of up to 50m (55 yards) between control- and receiver section
operating voltage: single 12-15V AC or DC, 300mA
dimensions:
control pcb: 2.7" x 2.0" x 0.6"
receiver pcb: 4.0" x 2.0" x 1.0"
