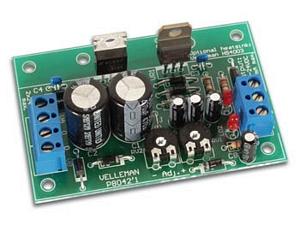

Low cost universal symmetric power supply
Just add a suitable transformer and a heatsink
Ideal for e.g. op-amp applications, amplifiers, ...
Trimmers can be replaced by potmeters to allow continuous adjustment of output voltage
LED output indicators
Positive and negative output adjustable between 1.2 and 24VDC
Output current: up to 2 x 1A continuous (with suitable heatsink)
Max. input voltage: 2 x 24VAC
Very good line and load regulation
Short circuit protection
Optional heat sink: HS4003 (for maximum 20W dissipation)
Dimensions: 3.1" x 2.0" x 0.9"
