3 To 30V / 3A Power Supply (Kit)

https://electronics123.odoo.com/web/image/product.template/4545/image_1920?unique=8b9d241
(0 review)

SKU : WSPC7203
Quantity on Hand : 2
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WSPC7203

37.95 37.95 USD 37.95

37.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart


Description:

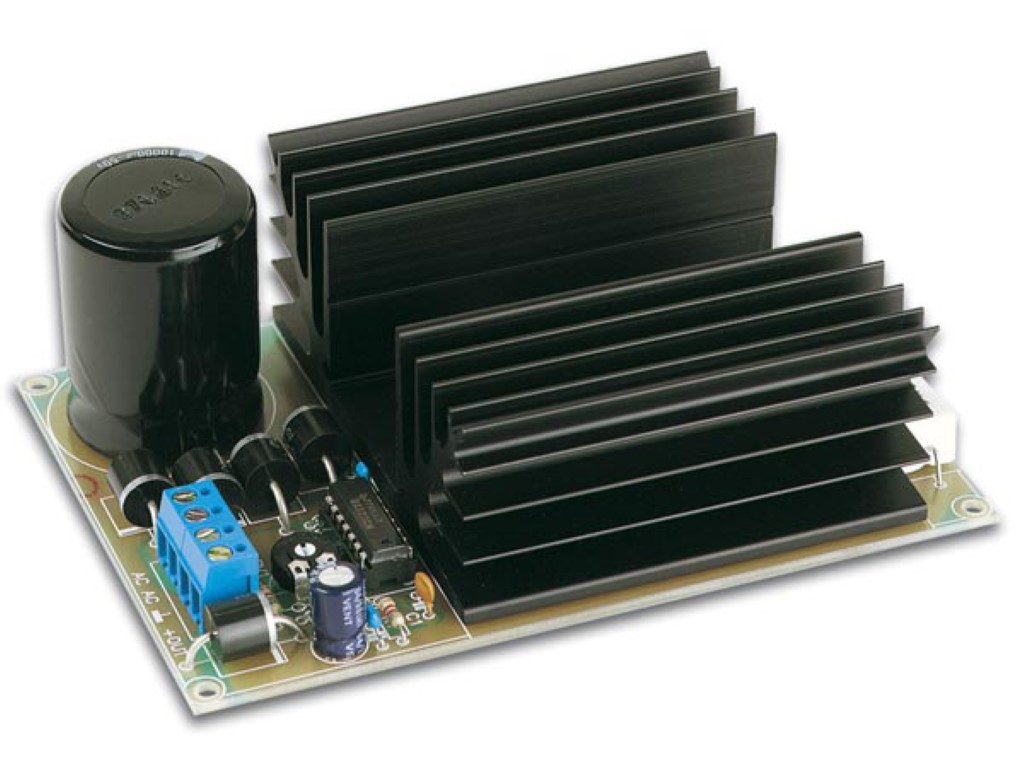

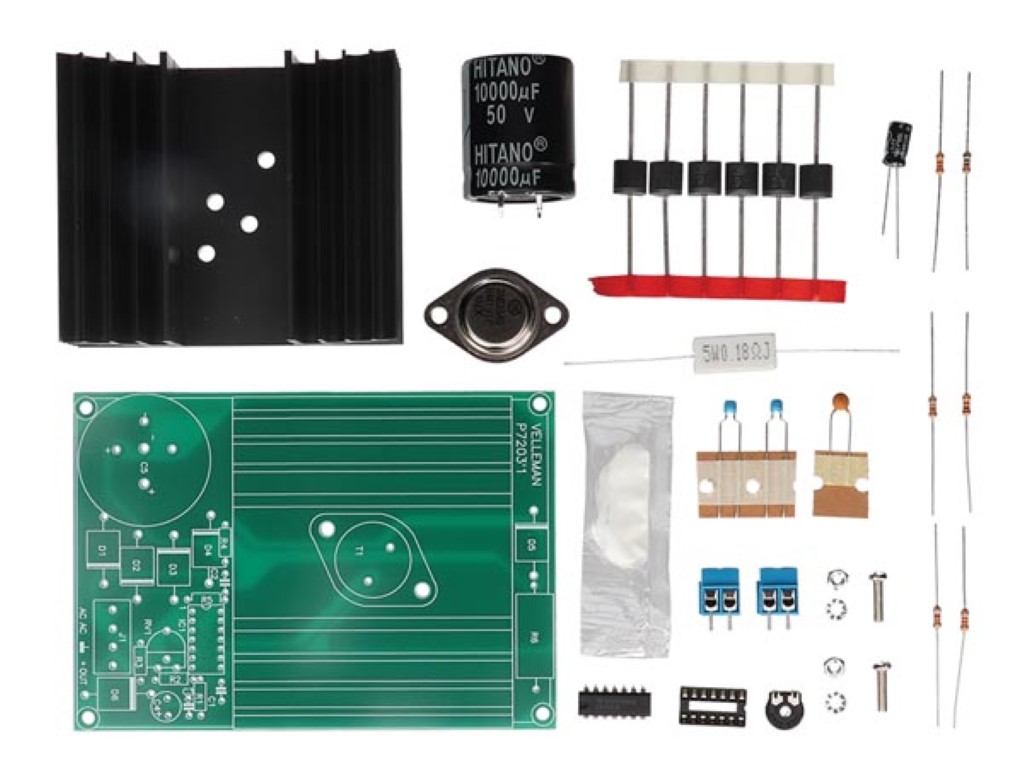

 This kit is meant as an auxiliary or as a permanent power supply for all common Velleman kits based on a stabilized DC voltage between 3 and 30V provided that the consumption does not exceed 3A. Of course this power supply unit can also be used for other purposes. By replacing the trimmer by a potentiometer, it may even be used as an adjustable power supply unit. Supplied with heatsink.

Specifications:
  • Output voltage: adjustable from 3 to 30V, stabilized
  • Output current: max. 3A
  • Output ripple voltage: 0.5mV
  • Short-circuit stable
  • Overload protected
  • Input voltage: 9 to 30V AC (depending on the desired output voltage)
  • Transformer not supplied
  • Dimensions: 5.1" x 3.6" x 2.0"
