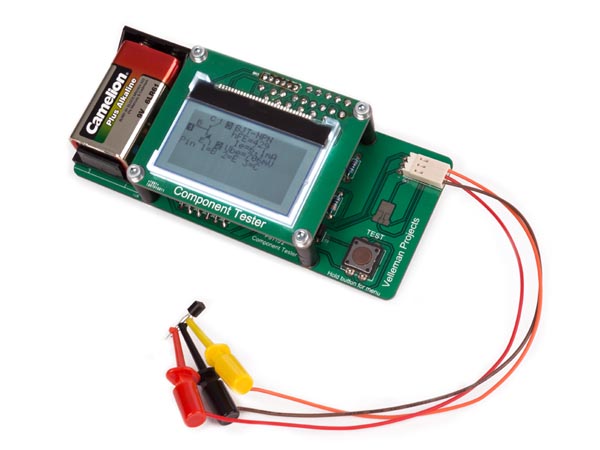

Component Tester Kit
SKU : WSMI8115
Quantity on Hand : 2
Skill Level : Assembled and Tested
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
Description: Build your own component tester and receive all useful information about resistors, diodes and many more.
- supported components:
- auto shutdown
- shows pin layout
- dimensions: 137 x 60 x 30 (W x L x H)
- resistance resolution: 0.1 Ohm (max. 50 MOhm)
- capacitance range: 28 pF to 100 mF
- inductance range: 0.01 mH to 20 H
- standby current: 20 nA
- power supply: 9 V battery
- test current approx.: 20 mA
- test speed: 2 seconds
