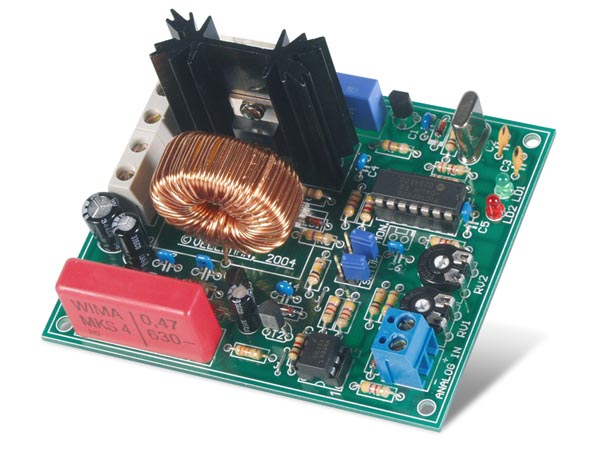

DC Controlled Dimmer (Kit)

https://electronics123.odoo.com/web/image/product.template/4604/image_1920?unique=e4f6bbc
(0 review)

SKU : WSL8064
Quantity on Hand : 5
Skill Level : Kit - Complex Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WSL8064

23.95 23.95 USD 23.95

23.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Features:
  • Simple brightness adjustment by means of a DC voltage
  • Optically isolated adjustment input
  • Pre-set adjustment for full brightness
  • Suitable for incandescent lamps, mains voltage halogen lighting, and low voltage halogen lighting in combination with a conventional transformer
  • "Soft start" feature to ensure lamp longevity
  • Transformer protection in case of defective light sources
  • LED status indication
  • Compatible with our computer interface cards: K8000, K8055
Specifications:
  • Adjustment voltage of 0 to 12Vdc max.
  • Max. adjustment current: 2.25mA at adjustment voltage of 12V
  • Suppression of radio & TV interference according to EN55015
  • Operating voltage: 110-125V or 230-240V AC (50/60Hz)
  • Max. load: 750W/230V or 375W/110V, adjustable from 0-98%
  • Max. phase shift with inductive load: 30°
  • PCB dimensions: 3.5" x 3.0" x 1.6"
