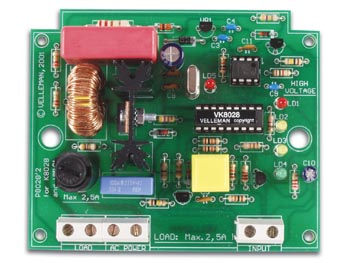

Multifunctional Dimmer
(0 review)

SKU : WSL8028
Quantity on Hand : 4
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


27.95 27.95 USD 27.95


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart



  • Micro-controller technology

  • 13 different functions: impulse switch, staircase light control, slow ON/OFF dimmer, interval timer, speed adjustment for fans, etc…

  • Suitable for both resistive and inductive loads (light bulbs, high-voltage halogen lighting and low-voltage halogen lighting with ferromagnetic transformer)

  • "Soft Start" prolongs the life of the bulbs

  • An advanced security system with fault indication automatically deactivates the module if the load or no-load behaves too inductively

  • Can be operated from several locations, simply by the parallel connection of push buttons

  • 2 delay times (anywhere between 5 sec. to 2 hours each) can be programmed through the learning mode

  • Memory is protected against power failures

  • Equipped with fuse and key for function selection

  • Equipped with a mains suppressor according to EN55015 norms


  • Supply voltage: 110-125V or 220-240V AC, 50 or 60Hz

  • Automatic detection of mains frequency: 50 or 60Hz

  • Max. load: 2.5A (300W / 120V ; 600W / 230V)

  • Dimensions: 3.9" x 3.2" x 1.4"
