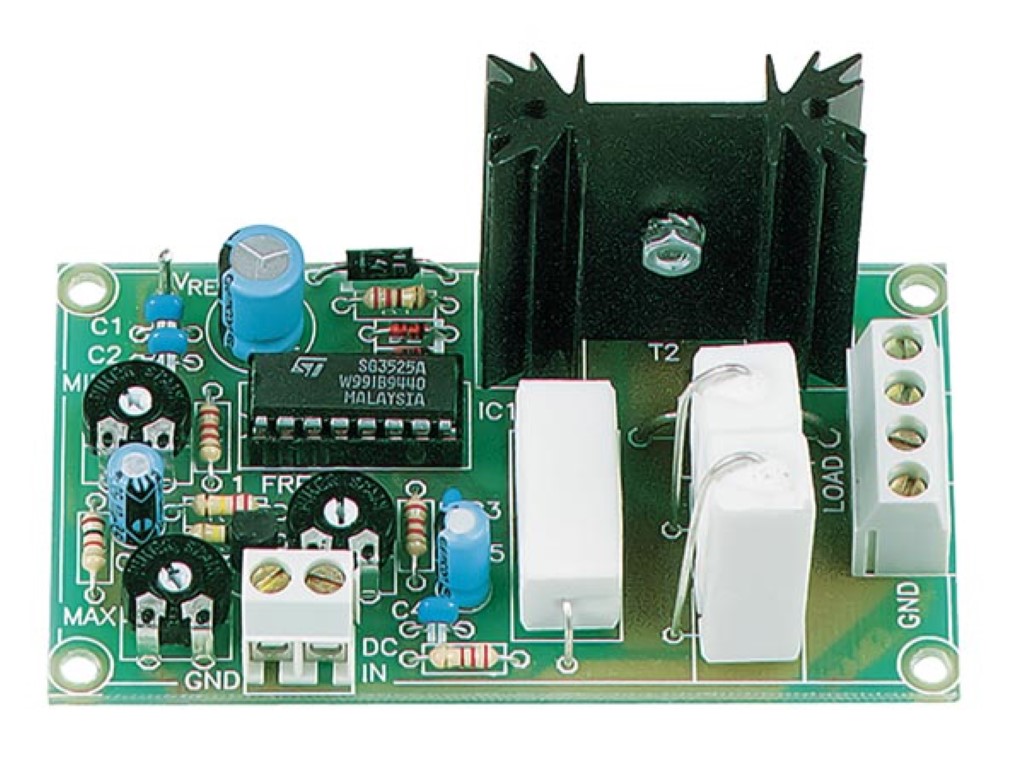

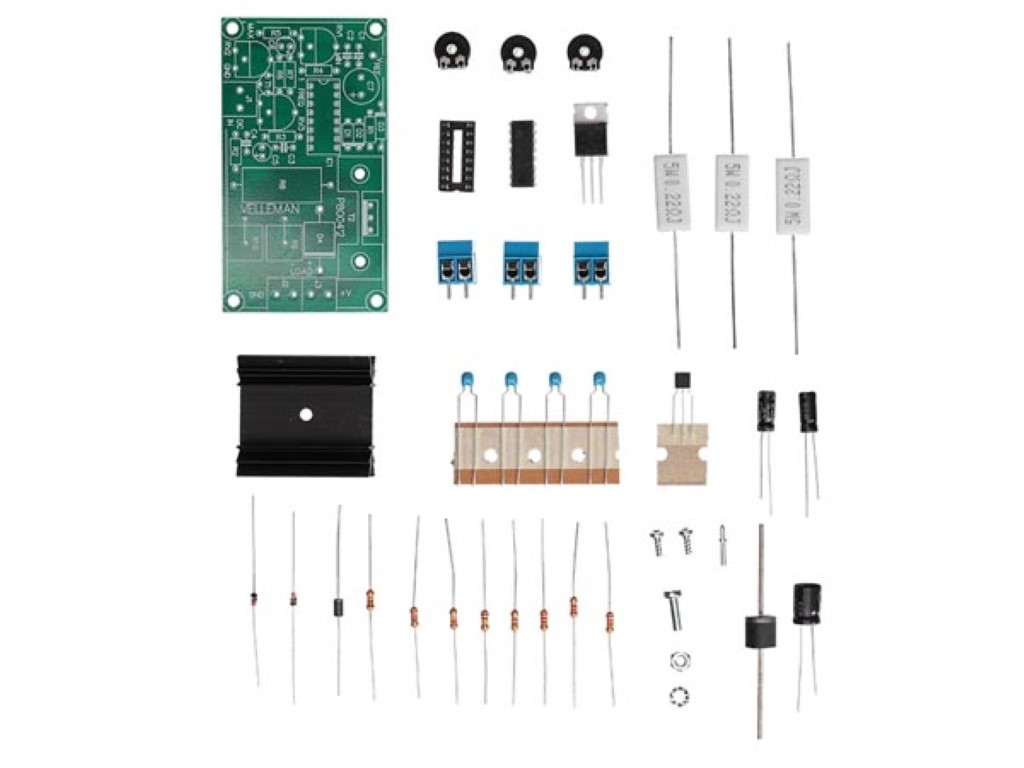

DC to Pulse Width Modulator (Kit)

(0 review)

SKU : WSI8004
Quantity on Hand : 3
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


18.95 18.95 USD 18.95


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: This control circuit is ideal for the accurate control of DC motors, lighting levels, small heaters as well as other applications. The circuit converts a DC voltage into a series of pulses, such that the pulse duration is directly proportional to the value of the DC voltage. The great advantage of such a circuit is that almost no power is lost in the control circuit. Protected against overload and short circuit.


  • Power supply: 8 to 35V DC
  • Maximum output current: 6.5A
  • Input voltage: between 2.5 and 35V DC
  • Dimensions: 3.4" x 1.9" x 1.8"
