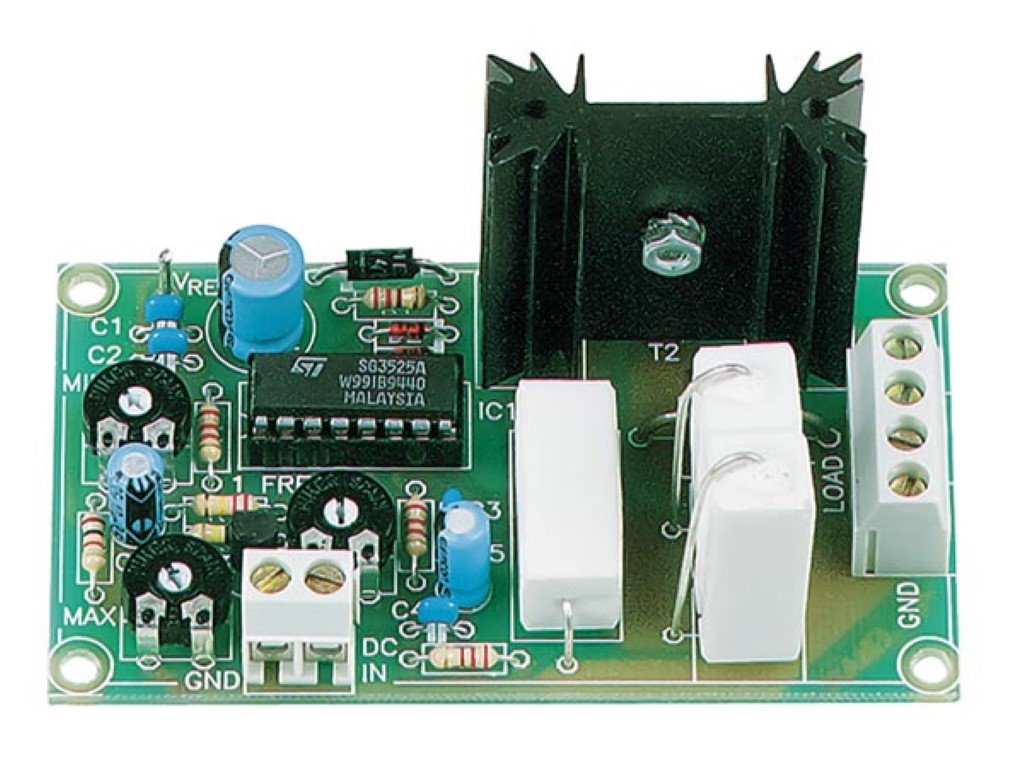

Description: This control circuit is ideal for the accurate control of DC motors, lighting levels, small heaters as well as other applications. The circuit converts a DC voltage into a series of pulses, such that the pulse duration is directly proportional to the value of the DC voltage. The great advantage of such a circuit is that almost no power is lost in the control circuit. Protected against overload and short circuit.
- Power supply: 8 to 35V DC
- Maximum output current: 6.5A
- Input voltage: between 2.5 and 35V DC
- Dimensions: 3.4" x 1.9" x 1.8"
