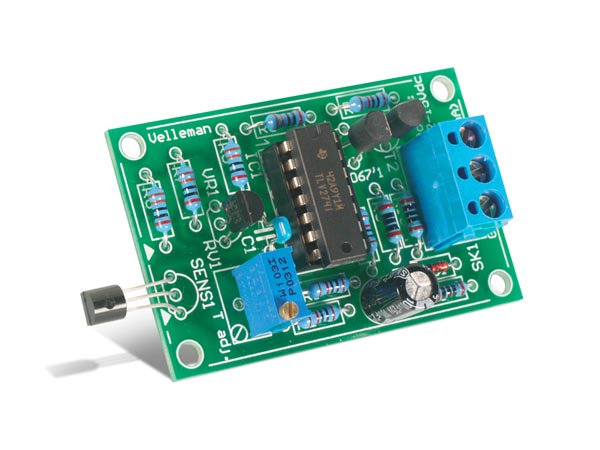

General Purpose Temperature Sensor

https://electronics123.odoo.com/web/image/product.template/4609/image_1920?unique=5013cf0
(0 review)

SKU : WSHA8067
Quantity on Hand : 1
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WSHA8067

15.45 15.450000000000001 USD 15.45

15.45

Not Available For Sale

This combination does not exist.

Add to cart

Applications:

Measure indoor and outdoor temperatures, control heating and/or cooling of rooms, equipment, etc. Monitor temperatures in processes, put a temperature readout on your website or check your pools temperature.

Specifications:

  • range: -20° ~ +70°C

  • output: 0 ~ 20mA current loop

  • output voltage compliance: 10V

  • accuracy: 2° full range

  • one single adjustment

  • 3-wire system: GND, +V and OUT

  • power supply: 12VDC for 0 ~ 5V OUT / 15VDC for 0 ~ 10V OUT

  • current consumption: 30mA max.

  • dimensions: 55 x 35 x 15mm (2.2" x 1.4" x 0.6")

Documentation and Downloads
