Description:

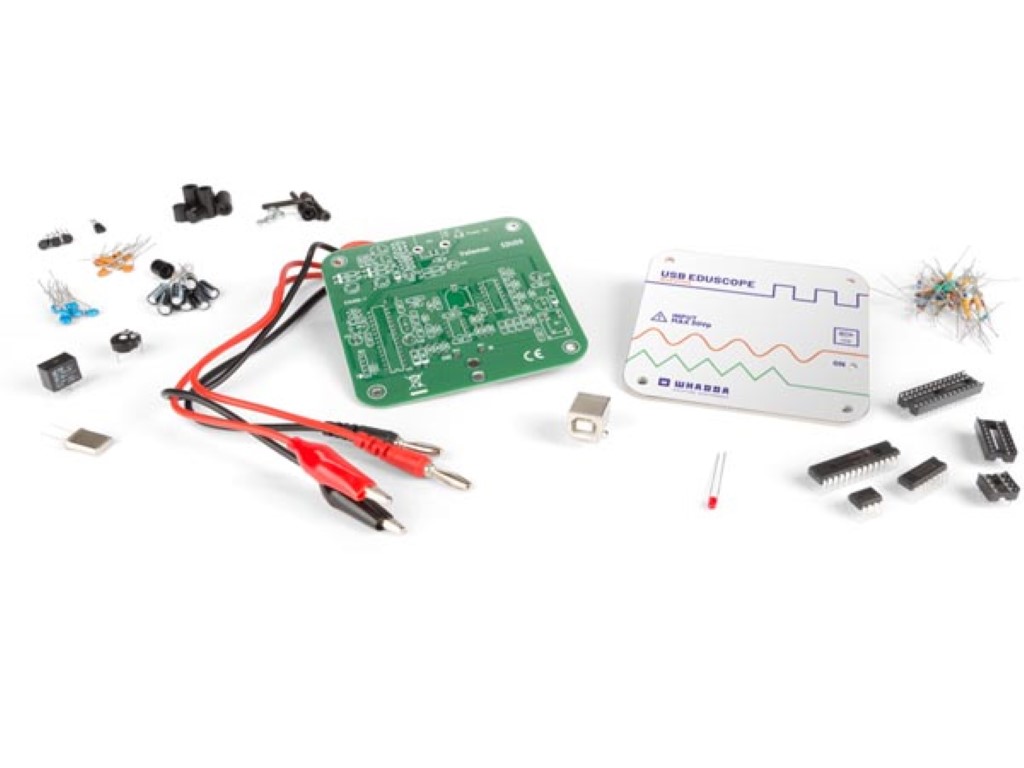

Build your own oscilloscope and use your PC to visualise the measurements.

This small kit is easy to install and features the same functions as a full-fledged oscilloscope (e.g.

PCSU200 or PCSU1000).The kit comes with a detailed manual and test leads..


scilloscope:

  • bandwidth: DC to 200 kHz ± 3 dB
  • input impedance: 100 kohm / 20 pF
  • maximum input voltage: 30 V (AC + DC)
  • time base: 10 µs to 500 ms per division
  • input range: 100 mV to 5 V/division
  • input sensitivity: 3 mV display resolution
  • readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency
  • record length: 1k samples
  • sampling frequency: 62.5 Hz to 1.5 MHz
  • sample history function
  • auto set-up function
  • pre-trigger function : on 0.1 ms/div .. 500 ms/div ranges
  • persistence options: Colour graded, Variable and Infinite


spectrum analyser:

  • frequency range: 0 .. 150 Hz to 75 kHz
  • operating principle: FFT
  • FFT resolution: 512 lines
