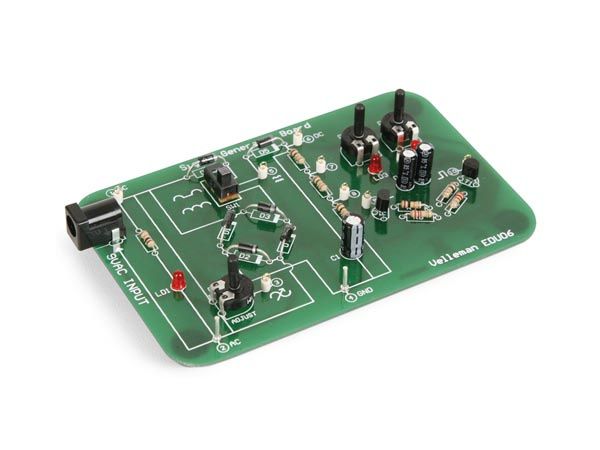

Description: Learn how to get the most out of your digital oscilloscope with the Oscilloscope Tutor Kit. The board generates safe real-world signals which can be used to perform measurements. Familiarize yourself with AC/DC and frequency measurements, sine and square waves, power supply ripple, full and half wave rectifiers, oscillators and more! Learn terms such as v/div, time/div, trigger level, auto-setup, etc. All experiments featured in this product are performed with the Velleman HPS140I handheld pocket scope. Most experiments can be done with any digital storage scope while others can be performed with an analog scope.
- Power Supply: Velleman PS0905ACU - Not Included
- Dimensions: 116 x 74 x 24 mm / 4.6 x 2.9 x 0.9"
- alternating current (AC)
- adjustable AC
- full- and half wave rectified AC
- smoothed direct current (DC)
- astable oscillator
Documentation and Downloads
Infosheet (Resistor color code)
Infosheet (YouTube videos)
