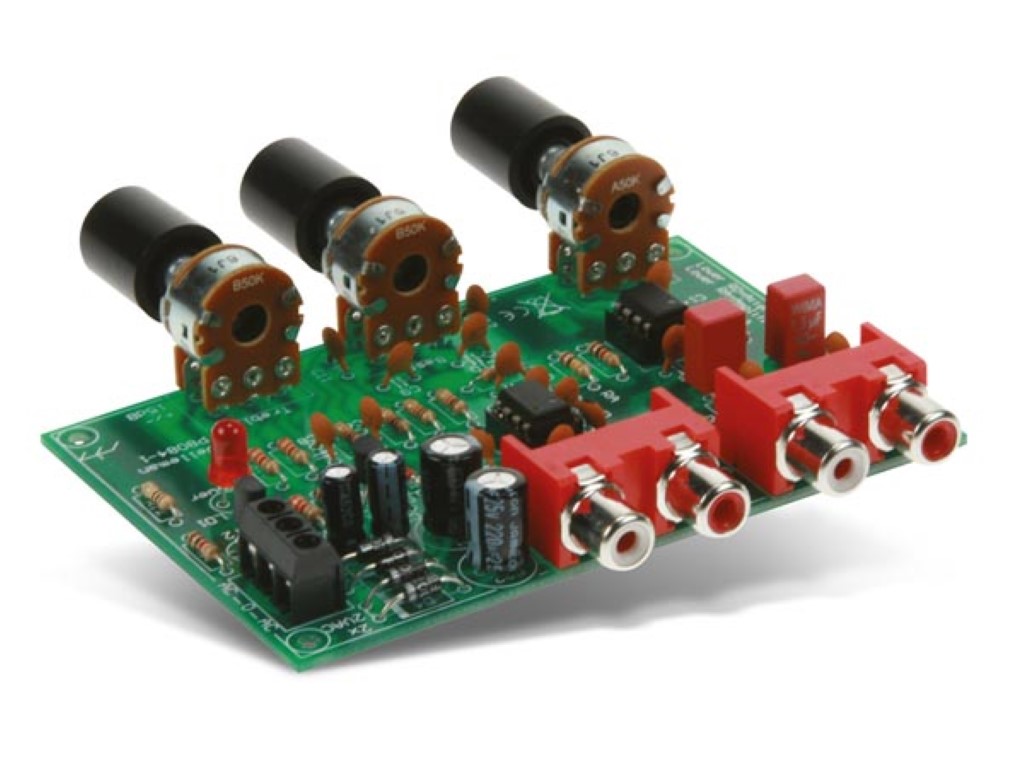

Volume and Tone Control - Preamplifier (Kit)

https://electronics123.odoo.com/web/image/product.template/4616/image_1920?unique=dc80b6b
(0 review)

SKU : WSAH8084
Quantity on Hand : 1
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WSAH8084

18.95 18.95 USD 18.95

18.95

Not Available For Sale

This combination does not exist.

Add to cart

Description: When using one of our amplifiers (big or small), you always need a volume control and preferably also a tone control.

This kit comes complete with all input / output connections and potentiometers.

Furthermore it is possible to amplify or attenuate the input signal.

Features:

  • Stereo volume control

  • Stereo Baxandall bass and treble control

  • Bass and treble potentiometers with centre click

  • Customizable attenuation or amplification

  • Complete with knobs

Specifications:

  • Supply voltage: 2 x 12VAC / 100mA

  • Frequency response: 3Hz - 500kHz (-3dB)

  • Standard amplification: x1

  • Signal to noise ratio: 98dB

  • Harmonic distortion:

  • Maximum output: 5V RMS

  • Tone control:

  • + and -15dB @ 20Hz

  • + and -15dB @ 15kHz

  • Input impedance: 50k ohms

  • Dimensions: 4.1 x 2.75"
